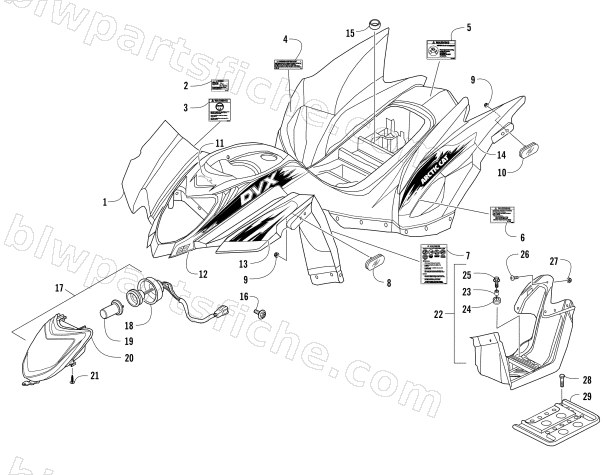

2017 Arctic Cat 90 2X4 DVX — BODY PANEL AND HEADLIGHT ASSEMBLY
2017 90 2X4 DVX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-209 | BODY ASSY,MAIN (LIME W/DECALS) | 1 | $421.95 | |
| 2 | 0411-836 | DECAL,WARNING HILL (MINI) | 1 | $82.95 | |
| 3 | 2411-137 | DECAL,WARNING-AGE(12) | 1 | $22.01 | |
| 4 | 1411-577 | DECAL,WARNING-OFF ROAD ONLY | 1 | $50.95 | |
| 5 | 1411-809 | DECAL,WARNING-PASSENGER | 1 | $3.30 | |
| 6 | 1411-938 | DECAL,WARNING-TIRE/LOAD (MINI) | 1 | $12.35 | |
| 7 | 1411-932 | DECAL,WARNING-GENERAL | 1 | $12.35 | |
| 8 | 3313-359 | REFLECTOR,FRONT (OVAL) | 1 | $13.73 | |
| 9 | 3304-774 | NUT FLANGE 5MM(G) | 1 | $0.81 | |
| 10 | 3313-360 | REFLECTOR,REAR (OVAL) | 1 | $13.73 | |
| 11 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 12 | 5411-930 | DECAL,SIDE-DVX-RH (DVX 90) | 1 | $50.95 | |
| 12 | 5411-931 | DECAL,SIDE-DVX-LH (DVX 90) | 1 | $50.95 | |
| 13 | 5411-928 | DECAL,SIDE-RH (DVX 90) | 1 | $38.95 | |
| 13 | 5411-929 | DECAL,SIDE-LH (DVX 90) | 1 | $38.95 | |
| 14 | 5411-932 | DECAL,REAR-ARCTIC CAT-RH (DVX 90) | 1 | $58.95 | |
| 14 | 5411-933 | DECAL,REAR-ARCTIC CAT-LH (DVX 90) | 1 | $58.95 | |
| 15 | 3303-232 | RUBBER REAR FENDER | 1 | $1.92 | |
| 16 | 3304-587 | BOLT WASHER 6*16 | 1 | $1.23 | |
| 17 | 3304-280 | LIGHT ASSY R HEAD | 1 | $203.95 | |
| 18 | 3304-282 | SOCKET COMP | 1 | $37.95 | |
| 19 | 3303-846 | BULB HEAD LIGHT | 1 | $42.95 | |
| 20 | 3304-281 | UNIT HEAD LIGHT | 1 | $180.95 | |
| 21 | 3304-650 | SCREW TAPPING 5*16 (CIRCLE HEAD) | 1 | $1.50 | |
| 22 | 3306-144 | MUDGUARD ASSY R FLOOR | 1 | $82.95 | |
| 22 | 3306-145 | MUDGUARD ASSY L FLOOR | 1 | $82.95 | |
| 23 | 3303-233 | COLLAR FLOOR | 1 | $2.33 | |
| 24 | 3303-227 | RUBBER WIND SCREEN | 1 | $1.92 | |
| 25 | 3304-586 | BOLT WASHER 6*20 | 1 | $1.23 | |
| 26 | 3305-703 | SCREW SPECIAL 6*20 | 1 | $1.78 | |
| 27 | 3304-431 | NUT LOCK | 1 | $1.23 | |
| 28 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 29 | 3304-494 | FOOTREST-RH | 1 | $37.95 | |
| 29 | 3304-495 | FOOTREST-LH | 1 | $37.95 |
