2017 Arctic Cat 700 HDX XT — MAGNETO ASSEMBLY
2017 700 HDX XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

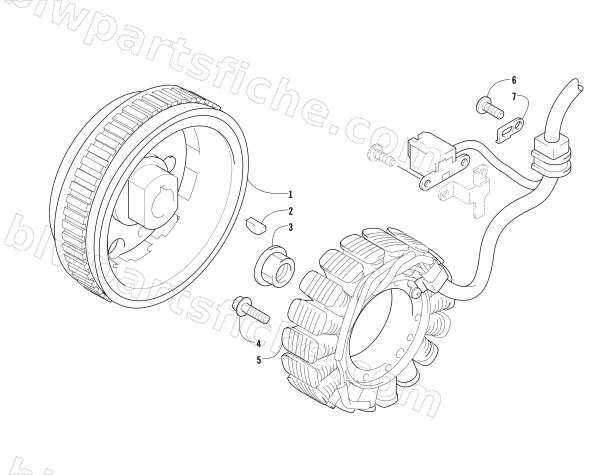

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0802-062 | ROTOR,IGNITION,EFI (H1-SO-SJ) | 1 | $220.95 | |
| 2 | 0829-012 | KEY, MAGNETO | 1 | $3.30 | |
| 3 | 0827-014 | NUT,MACH-HEX FLANGE M16X1.5 | 1 | $3.02 | |
| 4 | 8409-632 | SCREW,CAP-HFH M6X1.25X30 CL10.9 W/204 | 1 | $1.37 | |
| 5 | 0802-073 | STATOR,IGNITION-OM (SO) | 1 | $251.95 | |
| 6 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 0802-015 | CLAMP,STATOR ASSY (NO. 1) | 1 | $4.40 |
