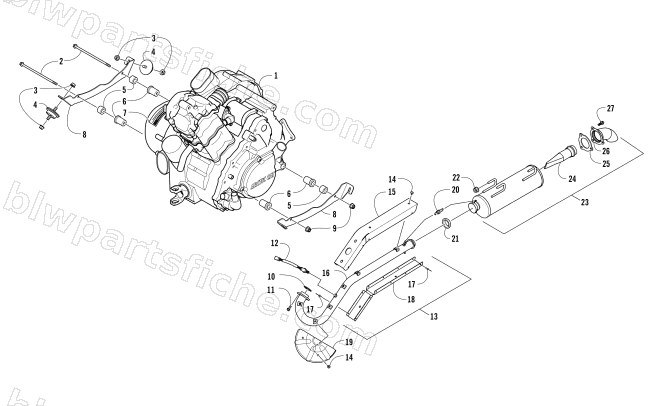

2017 Arctic Cat 700 HDX XT — ENGINE AND EXHAUST
2017 700 HDX XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 3 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 4 | 0408-014 | MOUNT,ENGINE | 1 | $47.95 | |
| 5 | 1423-025 | SPACER,ENGINE MOUNT | 1 | $10.97 | |
| 7 | 0411-426 | DECAL,WARNING-CLUTCH COVER-ATV | 1 | $3.30 | |
| 8 | 2516-768 | BRKT,ENGINE-RH-PTD BLK | 1 | $42.95 | |
| 8 | 2516-769 | BRKT,ENGINE-LH-PTD BLK | 1 | $42.95 | |
| 10 | 0412-338 | GASKET,EXHAUST PIPE | 1 | $20.63 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 13 | 0512-827 | PIPE, EXHAUST-ASSEMBLY | 1 | $283.95 | |
| 14 | 8477-610 | SCREW,MACH-TSTRH M6X1.0X10 Z&BLK | 1 | $0.68 | |
| 15 | 0412-693 | SHIELD,PIPE - UPPER REAR | 1 | $58.95 | |
| 17 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 18 | 0412-840 | SHIELD, PIPE-LOWER | 1 | $33.95 | |
| 19 | 0512-547 | SHIELD,PIPE-HEAD BEND | 1 | $50.95 | |
| 20 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 21 | 0412-375 | SEAL,EXHAUST | 1 | $20.63 | |
| 22 | 0412-544 | GROMMET,EXHAUST HANGER | 1 | $3.30 | |
| 24 | 0512-647 | SPARK ARRESTER | 1 | $37.95 | |
| 25 | 0412-675 | GASKET,SPARK ARRESTER | 1 | $20.63 | |
| 26 | 0512-733 | TAIL PIPE ASSY-PTD HI TEMP BLK | 1 | $27.95 | |
| 27 | 8408-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y | 1 | $0.54 |
