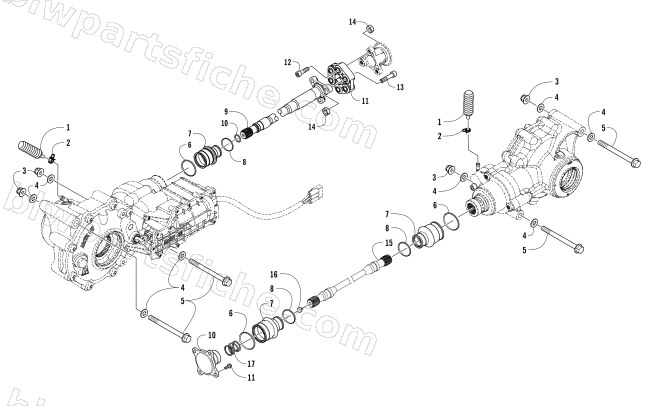

2017 Arctic Cat 700 HDX XT — DRIVE TRAIN ASSEMBLY
2017 700 HDX XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 0830-240 | O-RING-#2-124 | 1 | $3.57 | |
| 10 | 1423-090 | O-RING (2-115) | 1 | $1.64 | |
| 11 | 2402-014 | COUPLING,PROP SHAFT | 1 | $126.95 | |
| 12 | 1423-094 | SCREW,CAP-HSH M10 X 1.25 X 45 | 1 | $3.02 | |
| 13 | 1423-093 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $3.30 | |
| 14 | 0423-157 | NUT, TOP-LOCK | 1 | $0.95 | |
| 15 | 1502-743 | DRIVESHAFT,REAR-ASSY | 1 | $327.95 | |
| 16 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 17 | 1402-026 | SPRING | 1 | $1.92 | |
| 18 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 19 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 |
