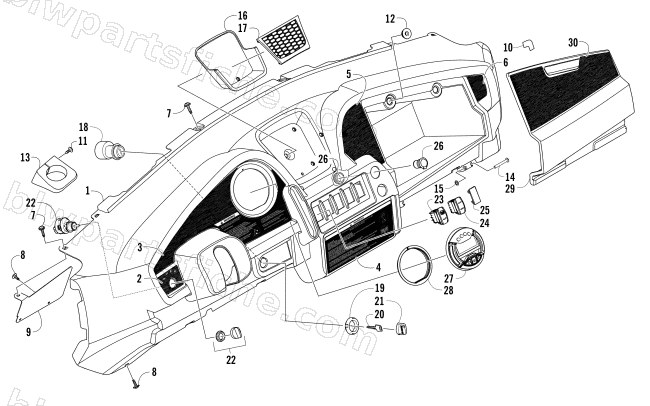

DASH ASSEMBLY
2017 700 HDX XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4411-829 | DECAL,HEADLIGHTS(4P) | 1 | $4.95 | |
| 3 | 4411-417 | DECAL, WARNING DASH | 1 | $33.95 | |
| 5 | 4411-121 | DECAL, PASSENGER 1 | 1 | $10.97 | |
| 6 | 4411-122 | DECAL, PASSENGER 2 | 1 | $3.30 | |
| 7 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 8 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 9 | 7506-118 | PANEL,SPLASH-RH-PTD BLK | 1 | $16.49 | |
| 9 | 7506-119 | PANEL,SPLASH-LH-PTD BLK | 1 | $16.49 | |
| 10 | 4406-995 | PAD,GLOVE BOX DOOR | 1 | $1.64 | |
| 11 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 12 | 0423-678 | GROMMET,PANEL-SIDE | 1 | $2.06 | |
| 13 | 4406-616 | COVER,DASHBOARD-RH | 1 | $16.49 | |
| 13 | 4406-617 | COVER,DASHBOARD-LH | 1 | $16.49 | |
| 14 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 15 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 16 | 4406-622 | PAD, DASHBOARD | 1 | $19.25 | |
| 17 | 4406-623 | NET,DASHBOARD | 1 | $5.09 | |
| 18 | 0609-936 | SWITCH,IGNITION-W/KEY | 1 | $42.95 | |
| 19 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 20 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 20 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 21 | 0630-324 | R/B 0430-054 | 1 | $13.95 | |
| 22 | 0409-187 | SWITCH,LIGHT-4P ROTARY | 1 | $64.95 | |
| 23 | 0409-061 | SWITCH, 2/4/LOCK | 1 | $33.95 | |
| 24 | 0409-071 | SWITCH,REVERSE OVERRIDE | 1 | $47.95 | |
| 25 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 26 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 28 | 0409-161 | RING,MOUNT-GAUGE | 1 | $13.73 | |
| 29 | 7506-086 | GLOVEBOX W/ DECALS | 1 | $50.95 | |
| 30 | 4411-120 | DECAL, PASSENGER-GLOVE BOX | 1 | $20.63 |
