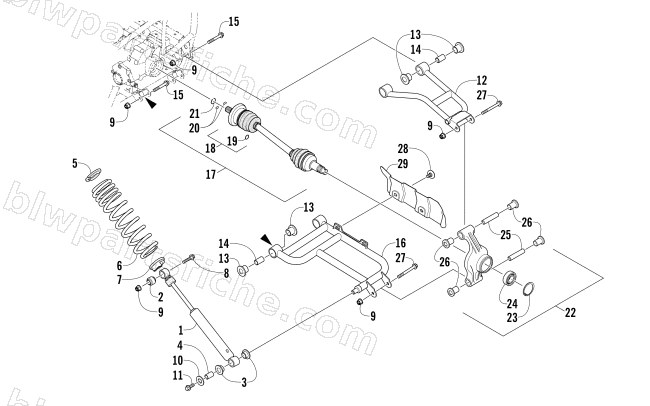

REAR SUSPENSION ASSEMBLY
2017 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0404-158 | SHOCK,REAR | 1 | $126.95 | |
| 2 | 0403-182 | BUSHING-DOUBLE BONDED | 1 | $15.11 | |
| 3 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 4 | 1603-575 | SLEEVE,EYELET.790X.812X.635" POWDER MET | 1 | $22.01 | |
| 5 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 6 | 0504-659 | SPRING,COIL-REAR-PTD-WHITE | 1 | $74.95 | |
| 7 | 0404-496 | ADJUSTER,CAM-SPRING | 1 | $20.63 | |
| 8 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 8 | 8409-050 | SCREW,CAP-HFH M10X1.25X50 CL10.9 Z&Y | 1 | $1.92 | |
| 10 | 0423-087 | WASHER,5/16 X 1 1/8-1/16 -Z&Y | 1 | $0.40 | |
| 11 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 12 | 0504-582 | A-ARM,REAR UPPER-RH-ASSY (BLACK) | 1 | $148.95 | |
| 12 | 0504-583 | A-ARM,REAR UPPER-LH-ASSY (BLACK) | 1 | $148.95 | |
| 13 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 14 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 15 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 16 | 0504-572 | A-ARM,REAR LOWER-RH-ASSY (BLACK) | 1 | $227.95 | |
| 16 | 0504-573 | A-ARM,REAR LOWER-LH-ASSY (BLACK) | 1 | $227.95 | |
| 18 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 20 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 21 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 22 | 0504-548 | KNUCKLE,REAR-ASSY | 1 | $252.95 | |
| 22 | 0504-549 | KNUCKLE,REAR-ASSY | 1 | $252.95 | |
| 23 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 24 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 25 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 26 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 27 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 28 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 29 | 1406-068 | GUARD,BOOT-REAR-RH (BLACK) | 1 | $37.95 | |
| 29 | 1406-069 | GUARD,BOOT-REAR-LH (BLACK) | 1 | $37.95 |
