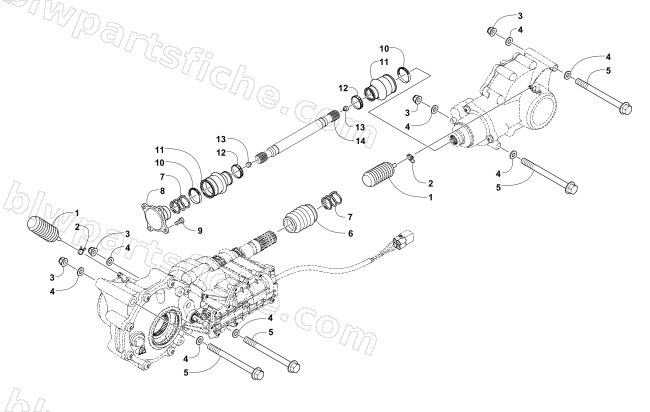

DRIVE TRAIN ASSEMBLY
2017 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 | |
| 7 | 1402-026 | SPRING | 1 | $1.92 | |
| 8 | 2402-193 | FLANGE,OUTPUT | 1 | $82.95 | |
| 9 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 0423-393 | CLAMP,42mm DIA - BOOT | 1 | $4.40 | |
| 11 | 0402-985 | BOOT,COUPLER (TBX) | 1 | $6.75 | |
| 12 | 0423-411 | CLAMP,30MM-BOOT | 1 | $4.26 | |
| 13 | 0673-618 | BUMPER,DRIVESHAFT | 1 | $3.57 | |
| 14 | 1402-092 | SHAFT, PROPELLER-REAR | 1 | $122.95 |
