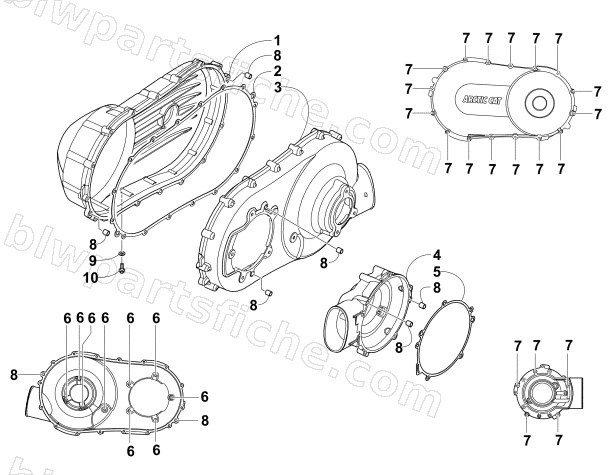

2017 Arctic Cat 1000 XT EPS — CLUTCH SIDE ENGINE COVERS
2017 1000 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0806-155 | COVER,KURT,OUTER,CLUTCH,MACH | 1 | $324.95 | |
| 2 | 0830-137 | GASKET,CVT COVER,VTWIN | 1 | $30.95 | |
| 3 | 0806-168 | COVER,INNER CLUTCH-MACH | 1 | $178.95 | |
| 4 | 0806-163 | COVER,CLUTCH,VTWIN-MACH-K | 1 | $156.95 | |
| 5 | 0830-218 | GASKET,CENTRIF CLUTCH COVER,VTWIN | 1 | $13.73 | |
| 6 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 7 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 8 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 | |
| 9 | 0830-013 | WASHER,CRUSH, 8 x 16 x 1 | 1 | $1.09 | |
| 10 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 |
