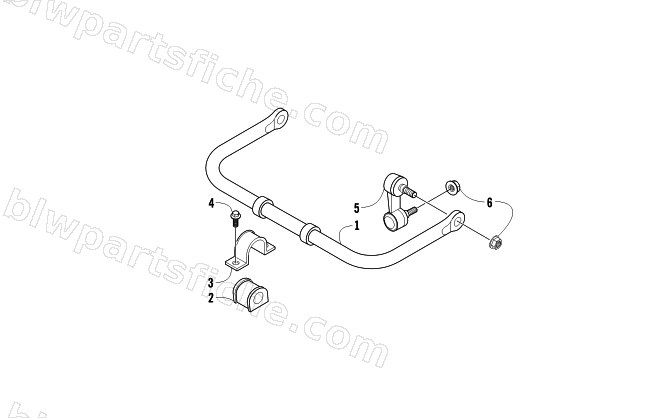

2016 Arctic Cat XC 450 EFI — SWAY BAR ASSEMBLY
2016 XC 450 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3306-500 | BAR,STABILIZER | 1 | $227.95 | |
| 2 | 3306-501 | BUSH STABILIZER | 1 | $10.97 | |
| 3 | 3306-504 | HOLDER STABILIZER | 1 | $4.82 | |
| 4 | 3304-543 | BOLT FLANGE 8*16 | 1 | $1.50 | |
| 5 | 3306-502 | STABILIZER JOINT RH | 1 | $94.95 | |
| 5 | 3306-503 | STABILIZER JOINT LH | 1 | $94.95 | |
| 6 | 3304-031 | NUT U 10MM | 1 | $2.61 |
