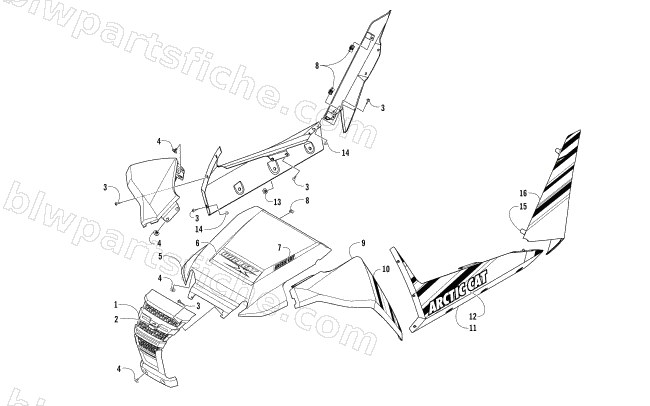

2016 Arctic Cat WILDCAT X — FRONT AND SIDE PANEL ASSEMBLIES
2016 WILDCAT X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2416-685 | GRILLE,FRONT | 1 | $41.95 | |
| 2 | 2411-943 | DECAL,GRILL-FRONT | 1 | $15.11 | |
| 3 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 4 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 5 | 5506-415 | HOOD,PTD-NEPTUNE BLUE | 1 | $337.95 | |
| 5 | 5506-151 | HOOD,VM RED-PTD | 1 | $369.95 | |
| 5 | 5506-417 | HOOD,SD WHITE-PTD | 1 | $476.95 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 5506-418 | PANEL,FENDER-FRT-RH-NEPTUNE BLUE-PTD | 1 | $212.95 | |
| 9 | 5506-419 | PANEL,FENDER-FRT-LH-NEPTUNE BLUE-PTD | 1 | $212.95 | |
| 9 | 5506-140 | PANEL,FENDER-FRT-RH VM RED-PTD | 1 | $212.95 | |
| 9 | 5506-141 | PANEL,FENDER-FRT-LH VM RED-PTD | 1 | $212.95 | |
| 9 | 5506-142 | PANEL,FENDER-FRT-RH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 9 | 5506-143 | PANEL,FENDER-FRT-LH SLVR DLR WHT-PTD | 1 | $212.95 | |
| 11 | 2416-988 | PANEL,SIDE-LWR-RH-BLK | 1 | $50.95 | |
| 11 | 2416-989 | PANEL,SIDE-LWR-LH-BLK | 1 | $50.95 | |
| 13 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 2416-990 | PANEL,SIDE-UPR-REAR-RH-BLK | 1 | $37.95 | |
| 15 | 2416-991 | PANEL,SIDE-UPR-REAR-LH-BLK | 1 | $37.95 |
