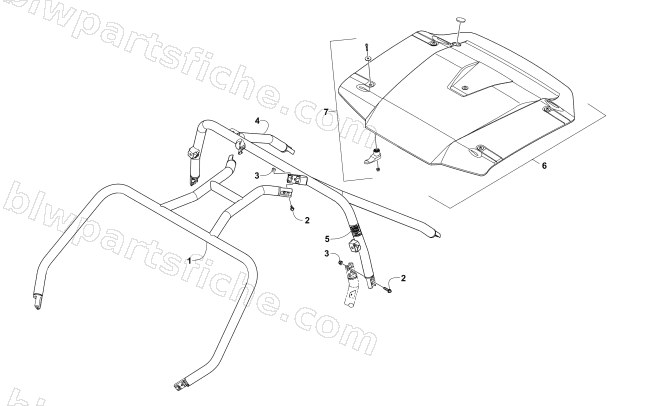

2016 Arctic Cat WILDCAT X SE EPS TAN — ROPS ASSEMBLY
2016 WILDCAT X SE EPS TAN
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-113 | R/B 8506-091 | 1 | $374.95 | |
| 2 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 3 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 4 | 5506-907 | R/B 8506-088 | 1 | $615.95 | |
| 5 | 3411-970 | DECAL,WARNING-ROPS | 1 | $3.30 | |
| 6 | 5506-455 | ROOF,WC-PKG | 1 | $646.95 |
