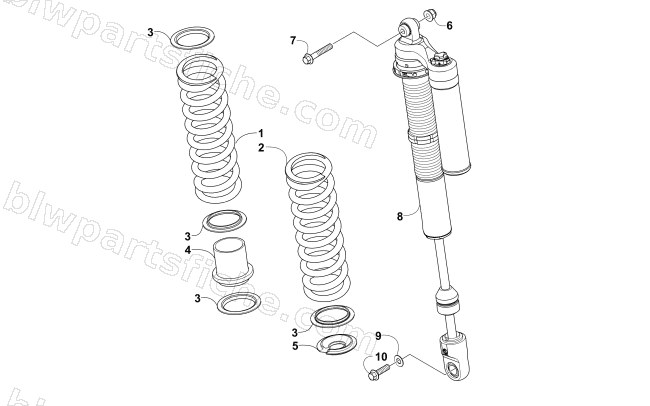

REAR SUSPENSION SHOCK ASSEMBLY
2016 WILDCAT X SE EPS TAN
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-865 | SPRING,REAR TENDER-BLK | 1 | $169.95 | |
| 2 | 0504-864 | SPRING,REAR MAIN-BLK | 1 | $169.95 | |
| 3 | 0404-417 | SPACER,SPRING 2.5" ID | 1 | $29.95 | |
| 4 | 0403-414 | COUPLER, SPRING 10MM X 55MM | 1 | $20.63 | |
| 5 | 0403-415 | RETAINER,SPRING 2.0" BODY | 1 | $26.95 | |
| 6 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 7 | 8409-060 | SCREW,CAP-HFH M10X1.25X60 CL10.9 Z&Y | 1 | $3.71 | |
| 8 | 0404-412 | R/B 0404-607 | 1 | $1,169.95 | |
| 9 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 10 | 8409-030 | SCREW,CAP-HFH M10X1.25X30 CL10.9 Z&Y | 1 | $2.47 |
