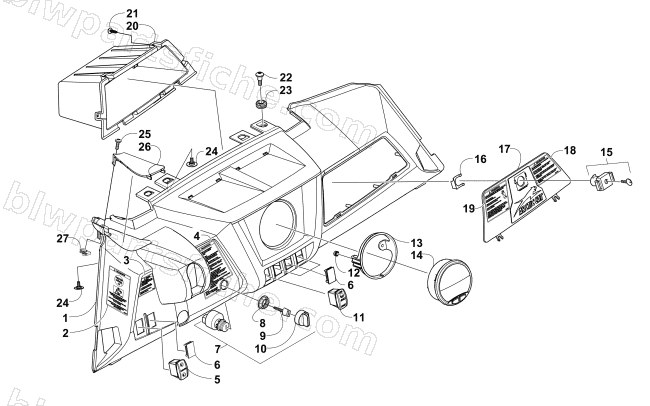

DASH ASSEMBLY
2016 WILDCAT X SE EPS TAN
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-225 | PANEL,DASH (W/DECALS) | 1 | $82.95 | |
| 2 | 3411-259 | DECAL,WARNING-AGE-DASH LH | 1 | $6.34 | |
| 3 | 2411-893 | DECAL,WARNING-DASH LH | 1 | $4.95 | |
| 4 | 2411-892 | DECAL,WARNING-DASH RH (1 PASS) | 1 | $4.95 | |
| 5 | 0409-149 | SWITCH, LIGHTS-EPOXY | 1 | $56.95 | |
| 6 | 0409-070 | PLUG,SWITCH HOLE | 1 | $3.57 | |
| 7 | 0609-936 | SWITCH,IGNITION-W/KEY | 1 | $42.95 | |
| 8 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 9 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 9 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 10 | 0630-324 | R/B 0430-054 | 1 | $13.95 | |
| 11 | 0409-148 | SWITCH,2/4/LOCK-EPOXY | 1 | $58.95 | |
| 12 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 13 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 14 | 0520-249 | GAUGE,A/D-ISO-5" (015 1000 WC X) | 1 | $525.95 | |
| 15 | 2416-985 | CYLINDER,LATCH-GLOVE BOX | 1 | $30.95 | |
| 16 | 2416-984 | CLIP,RETAINER-GLOVE BOX LATCH | 1 | $3.16 | |
| 17 | 5506-191 | DOOR,BOX-GLOVE (W/DECALS) | 1 | $20.63 | |
| 18 | 2411-970 | DECAL,WARNING-OCCUPANT-GLOVE BOX-RH | 1 | $6.34 | |
| 19 | 4411-789 | DECAL,WARNING-OCCUPANT-DASH | 1 | $6.47 | |
| 20 | 2416-842 | BOX,GLOVE | 1 | $30.95 | |
| 21 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 22 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 23 | 1423-104 | GROMMET | 1 | $1.37 | |
| 24 | 1423-133 | SCREW,SHOULDER 11 X 3.5 X 6MM | 1 | $3.44 | |
| 25 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 26 | 2416-840 | PANEL,ACCESS-BRAKE | 1 | $6.47 | |
| 27 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 |
