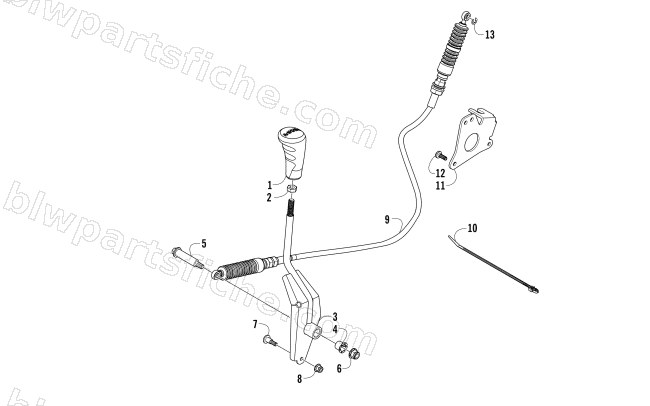

SHIFTER ASSEMBLY
2016 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2402-123 | KNOB,SHIFT-3/8-16 THD (PRNHL) | 1 | $50.95 | |
| 2 | 0423-885 | NUT, JAM 3/8-16 Z&BLK | 1 | $1.50 | |
| 3 | 2502-186 | LEVER,SHIFT,MACH-BLACK | 1 | $61.95 | |
| 4 | 2402-213 | BUSHING (.5 ID X .594 OD X .25 L) | 1 | $2.33 | |
| 5 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 6 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 8 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 9 | 0487-089 | CABLE,SHIFT-CONSOLE (P145) | 1 | $90.95 | |
| 10 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 11 | 2402-113 | BRKT,MOUNT-SHIFT CABLE | 1 | $12.35 | |
| 12 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 13 | 0124-057 | E-RING | 1 | $1.64 |
