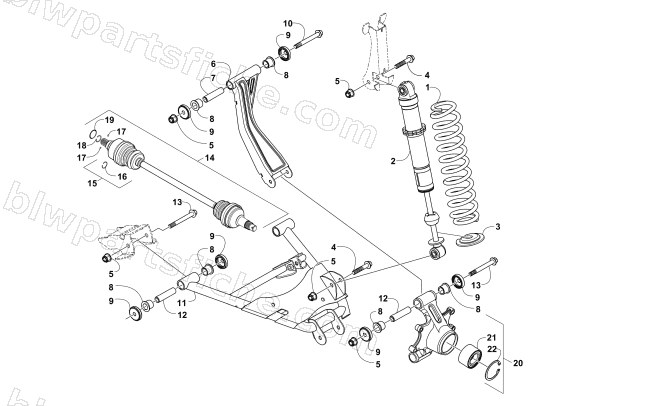

REAR SUSPENSION ASSEMBLY
2016 WILDCAT TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-794 | SPRING,13.5"-145LB-PTD-WHITE | 1 | $53.95 | |
| 2 | 0404-306 | SHOCK, REAR ARM-18.89" | 1 | $509.95 | |
| 3 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 4 | 8409-055 | SCREW,CAP-HFH M10X1.25X55 CL10.9 Z&Y | 1 | $4.13 | |
| 6 | 0504-806 | ARM,RR-UPR-RH-ASSY-BLK | 1 | $148.95 | |
| 6 | 0504-807 | ARM, RR-UPR-LH-ASSY-BLK | 1 | $148.95 | |
| 7 | 0403-305 | SLEEVE,FR-UPR-SUSPENSION | 1 | $10.97 | |
| 8 | 0403-264 | BUSHING,SUSPENSION | 1 | $13.73 | |
| 9 | 1423-204 | SEAL,SUSPENSION | 1 | $4.95 | |
| 10 | 1423-266 | SCREW,CAP-HFH M10-1.25X155 | 1 | $6.47 | |
| 11 | 1504-030 | ARM,RR-LWR-RH-ASSY-BLK | 1 | $236.95 | |
| 11 | 1504-031 | ARM,RR-LWR-LH-ASSY-BLK | 1 | $236.95 | |
| 12 | 0403-250 | SLEEVE, SUSPENSION | 1 | $6.75 | |
| 13 | 8413-090 | SCREW,CAP-HFH M10X1.25X90 CL10.9 SILV | 1 | $3.85 | |
| 15 | 2436-112 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 17 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 18 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 19 | 1402-963 | O-RING,H-SHAFT-HT-31.75MM ID X 1.78MM | 1 | $5.95 | |
| 20 | 0504-681 | KNUCKLE,REAR-ASSEMBLY | 1 | $307.95 | |
| 21 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 22 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 |
