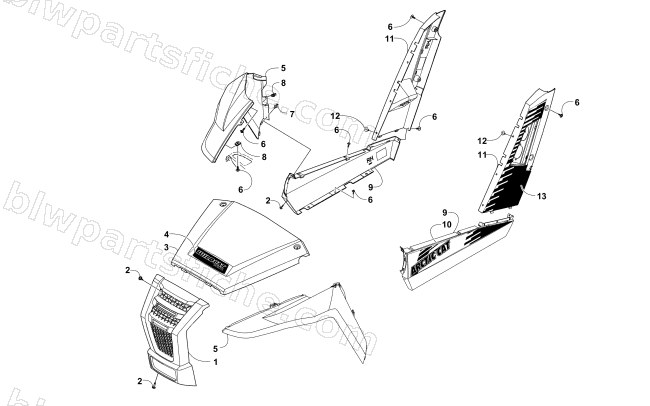

FRONT AND SIDE PANEL ASSEMBLIES
2016 WILDCAT TRAIL XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-263 | FASCIA,FRONT | 1 | $33.95 | |
| 2 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 3 | 4406-269 | PANEL,HOOD-BLACK | 1 | $82.95 | |
| 5 | 5506-510 | FENDER,FRONT-RH VIBRANT RED | 1 | $249.95 | |
| 5 | 5506-511 | FENDER,FRONT-LH VIBRANT RED | 1 | $249.95 | |
| 5 | 5506-508 | FENDER,FRONT-RH TEAM ARCTIC GREEN | 1 | $249.95 | |
| 5 | 5506-509 | FENDER,FRONT-LH TEAM ARCTIC GREEN | 1 | $249.95 | |
| 6 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 7 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 8 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 9 | 4406-280 | PANEL,LOWER SIDE-RH BLACK | 1 | $42.95 | |
| 9 | 4406-281 | PANEL,LOWER SIDE-LH BLACK | 1 | $42.95 | |
| 11 | 5506-582 | PANEL,REAR SIDE-RH-VIBRANT RED | 1 | $244.95 | |
| 11 | 5506-583 | PANEL,REAR SIDE-LH-VIBRANT RED | 1 | $244.95 | |
| 11 | 5506-580 | PANEL,REAR SIDE-RH-TEAM ARCTIC GREEN | 1 | $244.95 | |
| 11 | 5506-581 | PANEL,REAR SIDE-LH-TEAM ARCTIC GREEN | 1 | $244.95 | |
| 12 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 |
