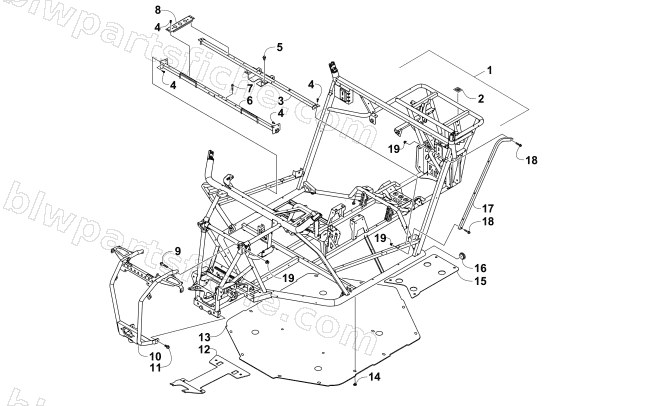

FRAME AND RELATED PARTS
2016 WILDCAT TRAIL XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8506-858 | FRAME W/WARNING DECALS (WC TRL) | 1 | $2,628.95 | |
| 2 | 4411-110 | DECAL,WARNING-TOWING-REAR | 1 | $4.95 | |
| 3 | 5506-218 | TUBE,SEAT SUPPORT-PTD BLACK | 1 | $79.95 | |
| 4 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 6 | 5506-414 | TUBE,SEAT SUPPORT-PTD BLACK | 1 | $81.95 | |
| 8 | 5506-398 | BRACKET,SEAT SUPPORT-PTD BLK | 1 | $10.95 | |
| 9 | 8408-845 | SCREW,CAP-HFH M8X1.25X45 CL8.8 Z&Y | 1 | $1.09 | |
| 10 | 5506-235 | BUMPER,PTD-BLK (WC50) | 1 | $188.95 | |
| 12 | 4406-347 | PANEL,SKID-FRONT | 1 | $42.95 | |
| 13 | 4406-348 | PANEL,SKID-CENTER | 1 | $212.95 | |
| 14 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 | |
| 15 | 4406-349 | PANEL,SKID-REAR | 1 | $37.95 | |
| 16 | 2416-962 | CAP,FRAME-44.45MM | 1 | $12.35 | |
| 17 | 5506-396 | TUBE,DOOR HINGE-RH-PTD | 1 | $50.95 | |
| 17 | 5506-397 | TUBE,DOOR HINGE-LH-PTD | 1 | $50.95 | |
| 18 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 |
