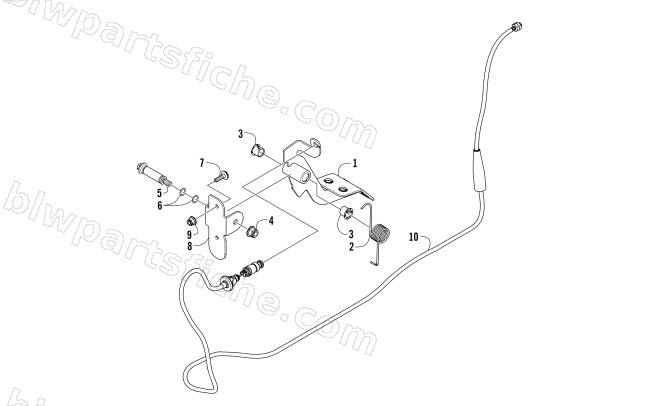

ACCELERATOR ASSEMBLY
2016 WILDCAT TRAIL XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2502-068 | PEDAL,ACCELERATOR-MACH (BLACK) | 1 | $197.95 | |
| 2 | 0405-233 | SPRING,TORSION | 1 | $8.95 | |
| 3 | 2402-213 | BUSHING (.5 ID X .594 OD X .25 L) | 1 | $2.33 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 1423-272 | SCREW,SHOULDER-M8-1.25X45 (W/ GROOVES) | 1 | $17.87 | |
| 6 | 1423-273 | O-RING, .364 ID X .070 W (2-012) | 1 | $0.95 | |
| 7 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 8 | 2502-069 | BRACKET,ACCELERATOR MOUNT-PTD BLACK | 1 | $10.97 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 0487-088 | CABLE,THROTTLE-HD DAMPER (P145) | 1 | $54.95 |
