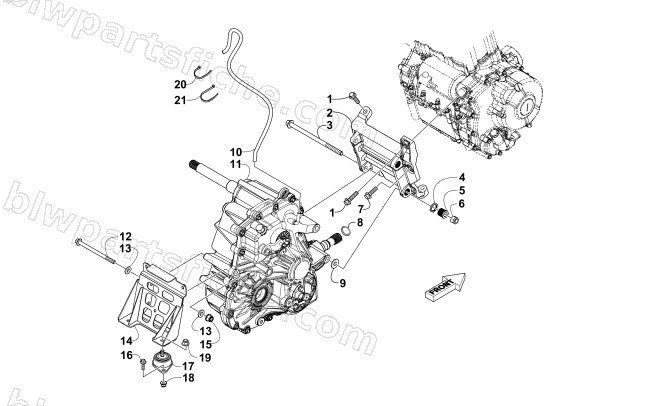

REAR DRIVE SYSTEM
2016 WILDCAT TRAIL SE EPS /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8409-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $2.06 | |
| 2 | 0408-040 | BRACKET,ENGINE/TRANSAXLE MOUNTING-MACH | 1 | $239.95 | |
| 3 | 1423-243 | SCREW,CAP-HFH M12X1.25X210 CL10.9 SILV | 1 | $13.73 | |
| 4 | 1423-245 | NUT,JAM - M22X1.5-6H | 1 | $5.65 | |
| 5 | 1423-244 | NUT,ADJUSTER - M22X1.5-6g | 1 | $13.73 | |
| 6 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 7 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 8 | 1423-090 | O-RING (2-115) | 1 | $1.64 | |
| 9 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 10 | 0410-070 | HOSE,FUEL-25 FT (0419-272 CTL) | 1 | $66.95 | |
| 12 | 1623-729 | SCREW,CAP-HFH M10-1.25X145 CL10.9 | 1 | $17.87 | |
| 13 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 14 | 0508-016 | BRKT,RR TRANSAXLE MTG-PTD BLK | 1 | $84.95 | |
| 16 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 17 | 0408-064 | MOUNT,ENGINE-WITH STUD | 1 | $41.95 | |
| 18 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 19 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 20 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
