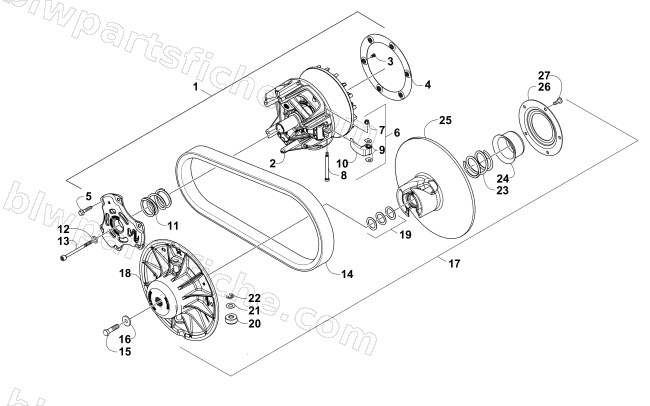

CLUTCH ASSEMBLIES
2016 WILDCAT SPORT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0823-452 | ASSY,CLUTCH PRIMARY-7.25" (UNCALIBRATED) | 1 | $521.95 | |
| 3 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 4 | 0823-424 | PLATE,WINDAGE 7.25" PRIMARY | 1 | $42.95 | |
| 5 | 0823-402 | SCREW,HEX FLANGE HD-1/4-20X1.25 | 1 | $5.09 | |
| 6 | 0823-426 | KIT,HARDWARE (FLYWEIGHT) | 1 | $61.95 | |
| 7 | 0823-399 | NUT,LOCK HEX #10-24 FLEXLOCK | 1 | $9.59 | |
| 8 | 0823-396 | SCREW,SHOULDER-HEX SKT .25X2.5 | 1 | $12.35 | |
| 9 | 0823-397 | WASHER,THRUST-.251X.260X.015 | 1 | $10.97 | |
| 11 | 0823-451 | SPRING, DRIVE COMP-BLK 0487_70/135 | 1 | $37.95 | |
| 12 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 13 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 | |
| 14 | 0823-497 | BELT,DRIVE | 1 | $147.95 | |
| 15 | 8400-060 | SCREW,CAP-HH M10X1.25X60 CL8.8 Z&C | 1 | $4.68 | |
| 16 | 1423-188 | WASHER,FLAT-11 ID X 38.1 OD X 4.75-STEEL | 1 | $6.83 | |
| 19 | 1423-189 | SHIM-21.272 ID X 30.18 OD X 1.02-STEEL | 1 | $1.09 | |
| 19 | 1423-219 | SHIM,STEEL-21.272X30.18X0.51 | 1 | $5.65 | |
| 20 | 0823-438 | ROLLER,CLUTCH .995 OD X .450 | 1 | $13.73 | |
| 21 | 0823-439 | R/B 0648-700 | 1 | $1.95 | |
| 22 | 0823-440 | RING,RETAINING E-RING-EXTERNAL .375 | 1 | $1.23 | |
| 23 | 0823-522 | SPRING, DRIVEN COMP-BLK 210439139195 | 1 | $105.95 | |
| 24 | 0823-444 | CUP,SPRING BOSS-LW UTILITY | 1 | $24.77 | |
| 26 | 0823-445 | PLATE,RETAINER BOSS-LW UTILITY | 1 | $20.63 | |
| 27 | 0823-446 | SCREW,TORX THD. FORM PAN HD-M6 X 1 X 16 | 1 | $2.61 |
