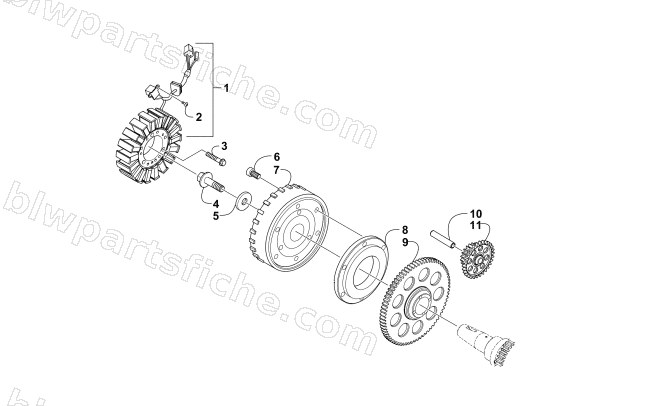

MAGNETO ASSEMBLY
2016 WILDCAT SPORT LIMITED EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3307-028 | STATOR COMP | 1 | $461.95 | |
| 2 | 3303-308 | BOLT HEX 5*12 | 1 | $0.81 | |
| 3 | 3305-945 | BOLT FLANGE SH 6X32 | 1 | $1.50 | |
| 4 | 3307-031 | BOLT UBS 10*35 | 1 | $5.09 | |
| 5 | 3307-032 | WASHER 10*25*4 | 1 | $33.95 | |
| 6 | 0826-120 | SCREW,HSH-M8X1.25X20 | 1 | $3.02 | |
| 7 | 3307-027 | FLYWHEEL COMP | 1 | $461.95 | |
| 8 | 3307-026 | OUTER COMP, STARTING CLUTCH | 1 | $260.95 | |
| 9 | 3307-025 | GEAR COMP, STARTING CLUTCH | 1 | $150.95 | |
| 10 | 0815-007 | PIN, STARTER IDLER GEAR NO. 1 | 1 | $6.75 | |
| 11 | 3306-796 | GEAR,STARTER REDUCTION | 1 | $102.95 |
