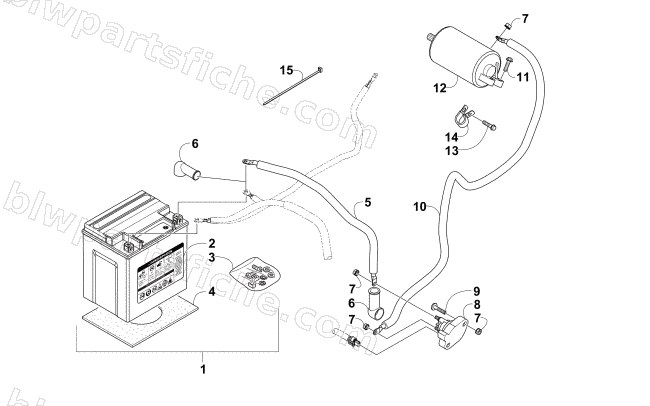

2016 Arctic Cat WILDCAT SPORT LIMITED EPS — BATTERY AND STARTER MOTOR ASSEMBLY
2016 WILDCAT SPORT LIMITED EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0445-115 | BATTERY,AGM-30AH-ASSY (YIX30L-BS) | 1 | $245.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0417-022 | PAD,BATTERY | 1 | $3.71 | |
| 5 | 0445-109 | CABLE,BATTERY-SOLENOID-20" RED #6 | 1 | $30.95 | |
| 6 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 7 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 8 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 9 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 10 | 0445-108 | CABLE,SOLENOID-STARTER-38" RED #6 | 1 | $41.95 | |
| 11 | 3304-002 | BOLT FLANGE SHF 6*22 | 1 | $0.81 | |
| 12 | 3307-029 | MOTOR UNIT STARTER | 1 | $517.95 | |
| 13 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 14 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 15 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 |
