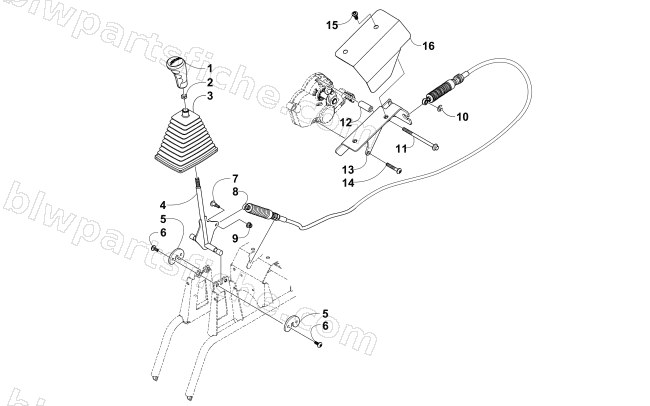

SHIFTER ASSEMBLY
2016 WILDCAT 4X
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2402-004 | KNOB,SHIFT-3/8-16 THD (STRAIGHT PATTERN) | 1 | $58.95 | |
| 2 | 0423-885 | NUT, JAM 3/8-16 Z&BLK | 1 | $1.50 | |
| 3 | 2416-765 | BOOT,SHIFT GATE (CONSOLE) | 1 | $66.95 | |
| 4 | 1502-841 | LEVER,SHIFT-CONSOLE-PTD PWD BLACK | 1 | $77.95 | |
| 5 | 1402-275 | RETAINER ,SHIFT LINKAGE | 1 | $2.88 | |
| 6 | 0423-910 | SCREW,TSH-M6-1.0X16-BLK W/PATCH LOCK | 1 | $1.09 | |
| 7 | 0423-356 | SCREW, SHOULDER-M6-1.0 X 22 RIE BLK | 1 | $0.95 | |
| 8 | 0487-091 | CABLE,SHIFT-HEAVY DUTY (WC-4) | 1 | $121.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 0124-057 | E-RING | 1 | $1.64 | |
| 11 | 1423-135 | SCREW,CAP HFH M8 X 1.25 X 112-Z&Y | 1 | $17.87 | |
| 12 | 1423-134 | SPACER,COLLAR-15.9 OD X 37mm LG | 1 | $10.97 | |
| 13 | 2502-191 | MOUNT-SHIFT CABLE Z&Y | 1 | $30.95 | |
| 14 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 15 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 16 | 2402-222 | SHIELD, HEAT | 1 | $10.97 |
