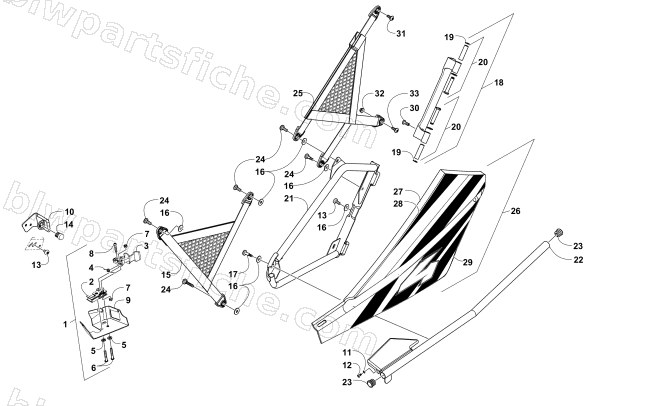

2016 Arctic Cat WILDCAT 4X — REAR DOOR ASSEMBLY
2016 WILDCAT 4X
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2436-268 | KIT,LATCH-DOOR-RR-RH-ASSY (WC 4X) | 1 | $185.95 | |
| 1 | 2436-269 | KIT,LATCH-DOOR-RR-LH-ASSY (WC 4X) | 1 | $185.95 | |
| 2 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 2 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 3 | 4406-999 | HANDLE,DOOR | 1 | $19.25 | |
| 4 | 1423-235 | SPRING,LATCH HANDLE | 1 | $4.54 | |
| 5 | 1423-120 | WASHER,LOCK-BLK M6 6.4MM X OD 12MM X 1.6 | 1 | $1.95 | |
| 6 | 1423-232 | SCREW,BUTTON HEAD TORX BLK M6X1.0X40 | 1 | $3.02 | |
| 7 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 8 | 1423-231 | SCREW,BUTTON HEAD TORX BLK M6X1.0X30 | 1 | $2.61 | |
| 9 | 4406-798 | BRKT,DOOR LATCH-REAR-RH | 1 | $39.95 | |
| 9 | 4406-799 | BRKT,DOOR LATCH-REAR-LH | 1 | $39.95 | |
| 10 | 4406-794 | STRIKER,DOOR-REAR-RH | 1 | $25.95 | |
| 10 | 4406-795 | STRIKER,DOOR-REAR-LH | 1 | $25.95 | |
| 13 | 1423-113 | SCREW,CAP BUTTON HEAD TORX BLK M6-1X10 | 1 | $3.85 | |
| 14 | 4406-419 | BUMPER,DOOR STOPPER | 1 | $5.78 | |
| 15 | 4406-261 | NET,FABRIC-LOWER-REAR | 1 | $45.95 | |
| 16 | 1423-152 | R/B 8050-223 | 1 | $3.95 | |
| 17 | 1423-192 | BOLT,SHOULDER-M5X0.8X23MM | 1 | $5.95 | |
| 18 | 1436-476 | HINGE-DOOR-RH-ASSY | 1 | $90.95 | |
| 18 | 1436-454 | HINGE-DOOR-LH-ASSY | 1 | $90.95 | |
| 19 | 1423-118 | CIRCLIP BLK MAGNI 575 COATING (8MM) | 1 | $6.89 | |
| 20 | 0518-096 | KIT,DOOR HINGE PIN | 1 | $39.95 | |
| 21 | 5506-200 | FRAME,REAR DOOR-RH-BLACK | 1 | $241.95 | |
| 21 | 5506-201 | FRAME,REAR DOOR-LH-BLACK | 1 | $241.95 | |
| 22 | 5506-932 | TUBE,DOOR FRAME-REAR-RH-BLK | 1 | $83.95 | |
| 22 | 5506-933 | TUBE,DOOR FRAME-REAR-LH-BLK | 1 | $83.95 | |
| 23 | 4406-013 | CAP,PLASTIC | 1 | $3.57 | |
| 24 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 25 | 4406-260 | NET,FABRIC-UPPER-REAR | 1 | $45.95 | |
| 27 | 4406-790 | PANEL,DOOR SKIN-REAR-RH-BLK | 1 | $312.95 | |
| 27 | 4406-791 | PANEL,DOOR SKIN-REAR-LH-BLK | 1 | $254.95 | |
| 30 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 31 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 32 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 33 | 0826-029 | SCREW,MACH-TSPH M6 X1X12 W/ THD LOCK | 1 | $0.68 |
