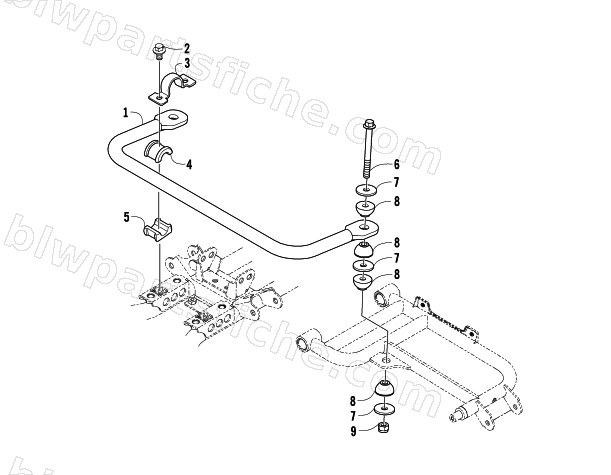

SWAY BAR ASSEMBLY
2016 TRV 700 EPS SE /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0504-709 | SWAYBAR - PTD BLACK | 1 | $180.95 | |
| 2 | 8409-016 | SCREW,CAP-HFH M10X1.25X16 CL10.9 Z&Y | 1 | $1.50 | |
| 3 | 0404-135 | CLAMP,SWAYBAR BUSHING-BLACK | 1 | $19.25 | |
| 4 | 0404-282 | BUSHING,SWAYBAR - UPPER HALF | 1 | $5.92 | |
| 5 | 0404-283 | BUSHING,SWAYBAR - LOWER HALF | 1 | $5.92 | |
| 6 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 | |
| 7 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 8 | 1402-434 | BUSHING,SWAYBAR LINK | 1 | $12.35 | |
| 9 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 |
