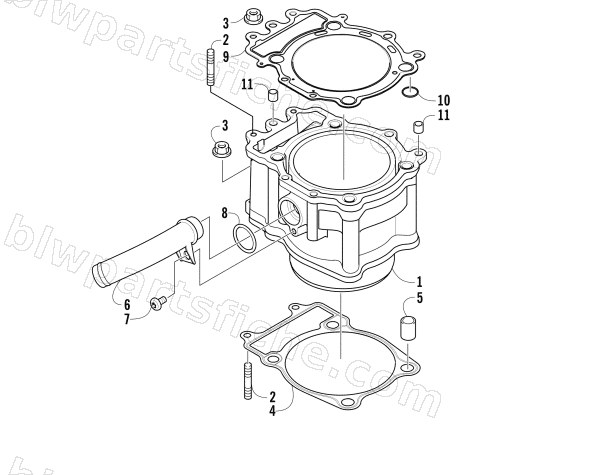

CYLINDER ASSEMBLY
2016 TRV 700 EPS SE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0804-060 | CYLINDER, 700H1, 11MA102 | 1 | $668.95 | |
| 2 | 0827-002 | STUD, M6 x 1 x 38 | 1 | $2.47 | |
| 3 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 4 | 0830-111 | GASKET,BASE | 1 | $20.63 | |
| 5 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 6 | 0804-047 | FITTING,COOLANT | 1 | $58.95 | |
| 7 | 8468-612 | SCREW,MACH-TSPNH M5X0.8X20 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0830-007 | O-RING, 21.9 ID X 2.7 W | 1 | $0.68 | |
| 9 | 0830-112 | GASKET,CYLINDER HEAD A700 | 1 | $86.95 | |
| 10 | 0830-113 | O-RING,CYL.HEAD-10.8X1.78 | 1 | $1.78 | |
| 11 | 0829-062 | DOWEL,SLEEVE-OD8 X L7 | 1 | $1.50 |
