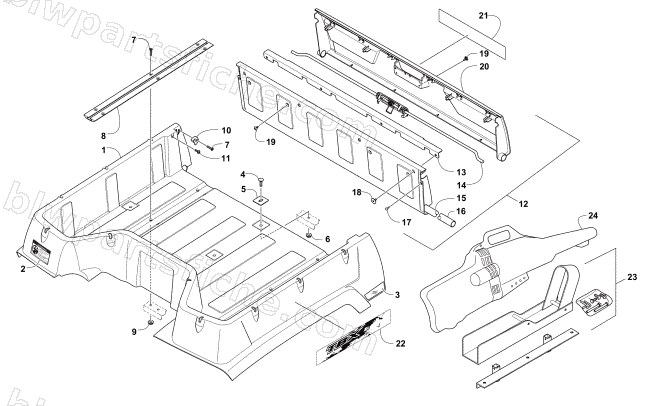

CARGO BOX AND TAILGATE ASSEMBLY (SE)
2016 TBX 700 EPS SE /
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-767 | BOX-ASSEMBLY(W/REFLECTORS) | 1 | $952.95 | |
| 2 | 0411-975 | DECAL,WARNING-NO PASS/WEIGHT LIMIT | 1 | $23.39 | |
| 3 | 0411-980 | REFLECTOR,REAR-RH | 1 | $10.97 | |
| 3 | 0411-979 | REFLECTOR,REAR-LH | 1 | $10.97 | |
| 4 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 5 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 6 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 7 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 8 | 0541-364 | RAIL,BOX-PTD BLACK | 1 | $47.95 | |
| 9 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 10 | 1506-940 | STRIKER,HOOK-TAIL GATE-RH-BLACK | 1 | $16.49 | |
| 10 | 1506-941 | STRIKER,HOOK-TAIL GATE-LH-BLACK | 1 | $16.49 | |
| 11 | 8471-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 Z&B | 1 | $0.68 | |
| 12 | 1506-568 | TAILGATE,ASSY | 1 | $599.95 | |
| 13 | 1506-567 | BRACE,TAILGATE-BLACK | 1 | $79.95 | |
| 14 | 1506-561 | LATCH,TAIL GATE-ASSY | 1 | $156.95 | |
| 15 | 1406-709 | PANEL,TAILGATE-FRONT | 1 | $268.95 | |
| 16 | 1406-711 | SHAFT,PIVOT-TAILGATE | 1 | $47.95 | |
| 17 | 1406-755 | BUMPER,GROMMET | 1 | $4.95 | |
| 18 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 19 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 20 | 1406-710 | PANEL,TAILGATE-REAR | 1 | $567.95 | |
| 21 | 1411-157 | DECAL,ARCTIC CAT-BOX | 1 | $82.95 | |
| 23 | 0436-637 | KIT,MOUNT SCABBARD GUN-TBX(2005) | 1 | $144.95 | |
| 24 | 0436-445 | DELUXE GUN SCABBARD | 1 | $125.95 |
