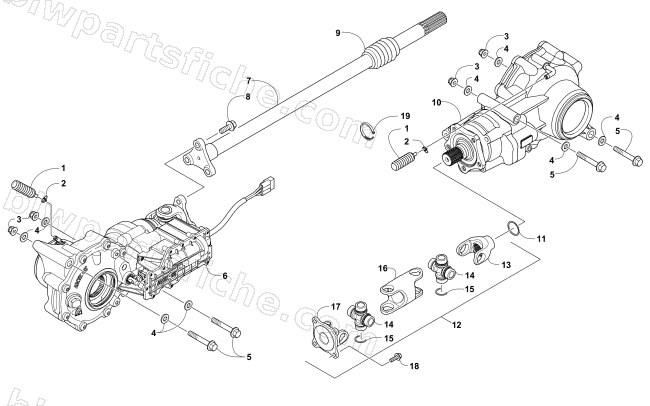

DRIVE TRAIN ASSEMBLY
2016 PROWLER 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1402-620 | BLADDER,CASE | 1 | $12.35 | |
| 2 | 0423-315 | CLAMP, HOSE-DOUBLE WIRE | 1 | $0.95 | |
| 3 | 8428-002 | NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z&Y | 1 | $5.09 | |
| 4 | 0423-426 | WASHER,FLAT-.438X.875X.125 | 1 | $0.68 | |
| 5 | 0423-404 | SCREW,CAP-HFH M10X1.25X120 CL10.9 Z&Y | 1 | $3.30 | |
| 6 | 2502-180 | GEARCASE,FRONT-ASSY (3.1-XTZ ELEC LOCK) | 1 | $1,630.95 | |
| 7 | 1402-795 | SHAFT,PROPELLER-FRONT(XTZ) | 1 | $263.95 | |
| 8 | 8409-025 | SCREW,CAP-HFH M10X1.25X25 CL10.9 Z&Y | 1 | $1.50 | |
| 9 | 0402-966 | BOOT,PROP SHAFT (LONG) | 1 | $13.73 | |
| 10 | 2502-181 | GEARCASE,REAR-ASSY (3.1) | 1 | $2,419.95 | |
| 11 | 1402-203 | O-RING | 1 | $3.16 | |
| 12 | 1502-560 | DRIVESHAFT,REAR-ASSY | 1 | $454.95 | |
| 13 | 0502-522 | YOKE, REAR SLIP - ASSEMBLY | 1 | $79.95 | |
| 14 | 0402-944 | CROSS, UNIVERSAL (25mm) - SET | 1 | $30.95 | |
| 16 | 1502-561 | DRIVESHAFT,REAR-BLACK | 1 | $169.95 | |
| 17 | 1402-689 | YOKE,FLANGE | 1 | $71.95 | |
| 18 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
