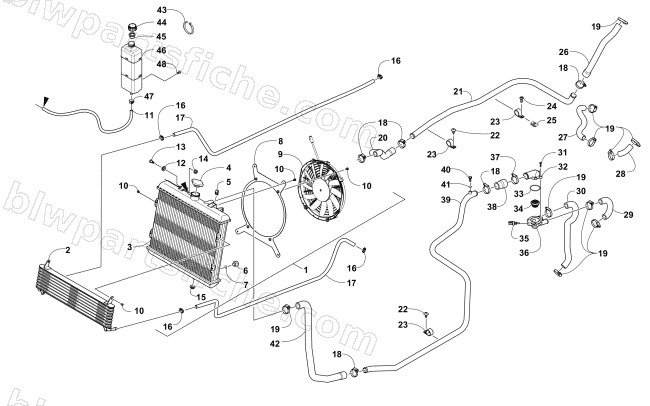

COOLING ASSEMBLY
2016 PROWLER 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0513-063 | RADIATOR,ASSEMBLY-OIL COOLER-W/O-HOSE | 1 | $1,372.95 | |
| 2 | 0413-241 | COOLER,OIL | 1 | $423.95 | |
| 3 | 0413-216 | RADIATOR - FABRICATED | 1 | $638.95 | |
| 4 | 0413-255 | CAP,RADIATOR | 1 | $53.95 | |
| 5 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 6 | 0413-195 | PLUG,DRAIN-RADIATOR | 1 | $20.63 | |
| 7 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 8 | 0413-217 | BRACKET,FAN | 1 | $69.95 | |
| 9 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 10 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 11 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 12 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 13 | 0423-484 | BOLT,SHOULDER-9.6X9.55XM6 BLK | 1 | $2.69 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0423-028 | BUSHING,STEM(LV28098) | 1 | $4.95 | |
| 16 | 0423-632 | CLAMP,HOSE #5 MICRO-GEAR SIZE 05 | 1 | $4.82 | |
| 18 | 0423-496 | CLAMP,HOSE- WORM 19-38mmX12.7mm | 1 | $2.47 | |
| 19 | 0423-490 | CLAMP (17-32mm) | 1 | $4.40 | |
| 20 | 0410-297 | HOSE,COOLANT-LOWER RADIATOR | 1 | $58.95 | |
| 21 | 0410-249 | PIPE,COOLANT-LOW RAD TO PUMP | 1 | $33.95 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 0423-594 | CLAMP,PIPE-COOLANT | 1 | $4.13 | |
| 24 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 25 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 26 | 0410-252 | HOSE,COOLANT-PIPE TO PUMP | 1 | $30.95 | |
| 27 | 0410-116 | HOSE,COOLANT-#2 COLD | 1 | $32.95 | |
| 28 | 0410-115 | HOSE,COOLANT-#1 COLD | 1 | $24.77 | |
| 29 | 0410-191 | HOSE,COOLANT-REAR | 1 | $23.39 | |
| 30 | 0410-190 | HOSE,COOLANT-FRONT | 1 | $30.95 | |
| 31 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 32 | 0808-092 | COVER, THERMOSTAT | 1 | $17.87 | |
| 33 | 0830-173 | ORING,ID44.12 X CS2.62 | 1 | $1.50 | |
| 34 | 0808-093 | THERMOSTAT, 71 DEG (FINAL) | 1 | $37.95 | |
| 35 | 0808-124 | SENSOR,WATER TEMP.-ASSY | 1 | $26.95 | |
| 36 | 0808-189 | HOUSING,THERMOSTAT-MACHINING | 1 | $54.95 | |
| 37 | 1623-093 | CLAMP,BAND-SAE #20 | 1 | $5.78 | |
| 38 | 0410-189 | HOSE,COOLANT-HOT SIDE | 1 | $19.25 | |
| 39 | 0510-597 | PIPE,COOLANT-UPP RAD TO THERMO-WELD' | 1 | $66.95 | |
| 40 | 0423-984 | R/B 3004-346 | 1 | $21.95 | |
| 41 | 0423-921 | O-RING, .07W X .24ID EPDM 80 | 1 | $2.06 | |
| 43 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 43 | 0623-316 | CABLE TIE,SGL LOOP-.500X14-BLK (RTE1400) | 1 | $10.97 | |
| 44 | 0413-328 | CAP,TANK-COOLANT | 1 | $3.44 | |
| 45 | 0413-329 | SLEEVE,TANK-COOLANT | 1 | $3.16 | |
| 46 | 0413-320 | TANK,COOLANT-RESERVOIR | 1 | $26.95 | |
| 47 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 48 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 |
