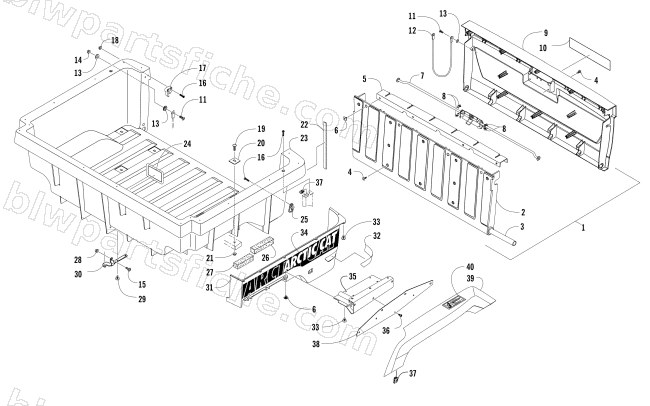

CARGO BOX AND TAILGATE ASSEMBLY
2016 PROWLER 1000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2506-205 | TAILGATE ASSEMBLY - BLACK | 1 | $357.95 | |
| 2 | 2406-365 | PANEL,TAILGATE INNER | 1 | $140.95 | |
| 3 | 1406-927 | SHAFT,PIVOT-TAILGATE | 1 | $26.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 1506-704 | BRACE,TAILGATE-BLACK | 1 | $58.95 | |
| 6 | 0423-101 | SCREW,BODY-6MM | 1 | $2.06 | |
| 7 | 2506-056 | LATCH,TAILGATE-BLACK | 1 | $112.95 | |
| 8 | 1406-706 | BEARING,HANDLE | 1 | $2.06 | |
| 9 | 2406-369 | PANEL,TAILGATE OUTER BLACK | 1 | $180.95 | |
| 10 | 2411-212 | DECAL,TAILGATE-CENTER (ARCTIC CAT) | 1 | $4.95 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0487-045 | CABLE,TAILGATE | 1 | $17.87 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 15 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 16 | 8474-630 | SCREW,MACH-TSFH M6X1.0X30 CL8.8 BLK | 1 | $1.23 | |
| 17 | 2506-664 | STRIKER,TAILGATE-RH-COATED | 1 | $17.87 | |
| 17 | 2506-665 | STRIKER,TAILGATE-LH-COATED | 1 | $17.87 | |
| 18 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 19 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 20 | 1506-933 | PLATE,RETAINING-BLACK (MATTE) | 1 | $12.35 | |
| 21 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 22 | 0417-006 | STRIP,FOAM .125 IN | 1 | $2.06 | |
| 23 | 2406-916 | BOX,REAR CARGO | 1 | $806.95 | |
| 24 | 4411-118 | DECAL,WARNING-CARGO(PROWLER R) | 1 | $20.63 | |
| 25 | 1506-539 | BRACKET,TAILGATE-BLACK | 1 | $20.63 | |
| 26 | 0417-010 | FOAM,CARGO BOX (1.75 X 2 X 8) | 1 | $6.89 | |
| 27 | 0417-011 | FOAM,CARGO BOX(1.625 X 2 X 6.5) | 1 | $5.78 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 30 | 7506-167 | BRACKET,BOX LATCH SPRING-PTD BLACK | 1 | $20.63 | |
| 31 | 1406-762 | PANEL,BOX-RIGHT-BLACK | 1 | $58.95 | |
| 31 | 1406-761 | PANEL,BOX-LEFT-BLACK | 1 | $58.95 | |
| 32 | 1411-128 | REFLECTOR,RH-REAR | 1 | $13.73 | |
| 32 | 1411-129 | REFLECTOR,LH-REAR | 1 | $13.73 | |
| 33 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 35 | 7506-062 | BRACKET,FENDER SUPPORT-RH-BLACK | 1 | $114.95 | |
| 35 | 7506-063 | BRACKET,FENDER SUPPORT-LH-BLACK | 1 | $114.95 | |
| 36 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 37 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 38 | 7506-258 | BRKT,FENDER MTG-RH-PTD | 1 | $33.95 | |
| 38 | 7506-259 | BRKT,FENDER MTG-LH-PTD | 1 | $33.95 | |
| 39 | 5506-960 | FENDER, RR RH-BLK(S) | 1 | $148.95 | |
| 39 | 5506-961 | FENDER, RR LH-BLK(S) | 1 | $148.95 | |
| 40 | 4411-883 | R/B 6411-496 | 1 | $4.95 |
