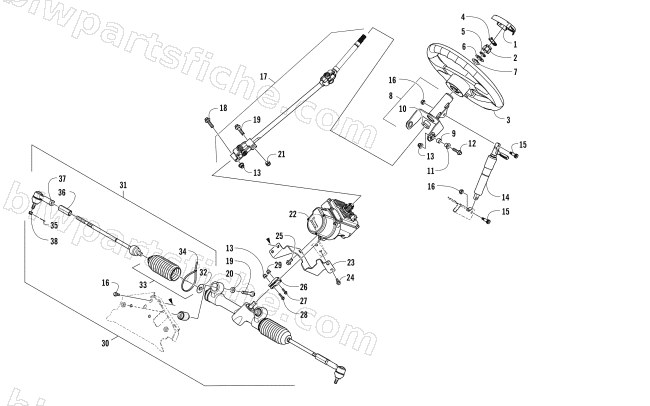

STEERING ASSEMBLY
2016 HDX 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-739 | COVER,STEERING WHEEL-BLK | 1 | $15.11 | |
| 2 | 0423-884 | NUT,HEX-SLOTTED- M16 X 2 Z&C | 1 | $12.35 | |
| 3 | 0405-398 | WHEEL,STEERING-OVERMOLDED | 1 | $101.95 | |
| 4 | 1423-045 | CLIP,STEERING WHEEL | 1 | $2.06 | |
| 5 | 1423-110 | SNAP RING,3/4 EXT X .086 THK | 1 | $1.50 | |
| 6 | 0828-071 | WASHER,BELLEVILLE | 1 | $4.95 | |
| 7 | 0423-558 | WASHER(28X19X1) | 1 | $3.02 | |
| 8 | 0505-891 | TILT STEERING-SUB ASSY | 1 | $89.95 | |
| 9 | 0405-405 | BUSHING, STEERING-TILT | 1 | $5.65 | |
| 10 | 0405-473 | BUSHING,TILT-FRONT-ASSY | 1 | $12.35 | |
| 11 | 0423-669 | SPACER,STEEL | 1 | $1.37 | |
| 12 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 13 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 0405-468 | SPRING,GAS-TILT ASSY | 1 | $105.95 | |
| 15 | 1423-250 | SCREW, SHOULDER-HSH M6-1.0X8X16-RIE | 1 | $3.71 | |
| 16 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 17 | 0405-534 | SHAFT,INTERMEDIATE STEERING (PS) | 1 | $283.95 | |
| 18 | 8408-840 | SCREW,CAP-HFH M8X1.25X40 CL8.8 Z&Y | 1 | $1.23 | |
| 19 | 8409-040 | SCREW,CAP-HFH M10X1.25X40 CL10.9 Z&Y | 1 | $1.50 | |
| 20 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 21 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 23 | 7506-120 | BRACKET,EPS MOUNT-PTD BLK | 1 | $37.95 | |
| 24 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 25 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 26 | 0405-440 | STEERING,COUPLER (THRU HOLE) | 1 | $100.95 | |
| 27 | 1423-076 | SCREW,CAP-HFH M6X1.0X35 CL10.9 SILV | 1 | $1.64 | |
| 28 | 1423-053 | SCREW,CAP-HFH M8X1.25X30 CL10.9 BLK | 1 | $2.61 | |
| 29 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 30 | 0505-689 | STEERING ASSY KIT-RACK AND PINION | 1 | $573.95 | |
| 31 | 0505-772 | TIE ROD KIT,INNER-W/ ROD END | 1 | $126.95 | |
| 32 | 0405-428 | PLATE,LOCK-STEERING RACK | 1 | $3.71 | |
| 33 | 0505-745 | BOOT KIT,RACK AND PINION | 1 | $33.95 | |
| 34 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 35 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 36 | 0505-640 | NUT,JAM-HEX, KIT- Z&Y (M12 X 1.5 X 56 L) | 1 | $9.59 | |
| 37 | 0505-743 | ROD END KIT-STEERING RACK | 1 | $47.95 | |
| 38 | 0423-072 | NUT,HEX CASTLE M10-1.25 | 1 | $2.61 |
