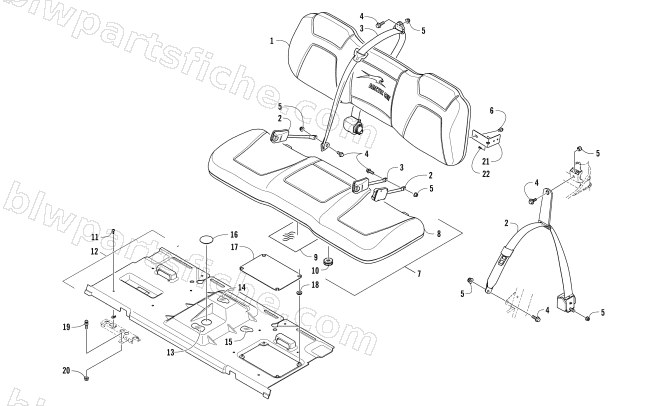

SEAT ASSEMBLY
2016 HDX 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 5506-889 | R/B 7506-700 | 1 | $360.95 | |
| 3 | 5506-892 | R/B 7506-704 | 1 | $379.95 | |
| 4 | 1423-182 | SCREW,CAP-HFH M12X1.75X30 CL10.9 RIE BLK | 1 | $3.71 | |
| 5 | 1423-184 | NUT,HEX FLG-NYL LOCK M12X1.75 CL10 Z&Y | 1 | $1.64 | |
| 6 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 7 | 5506-616 | SEAT,BENCH-BOTTOM-W/FOIL | 1 | $446.95 | |
| 8 | 1423-066 | GROMMET-SEAT | 1 | $50.95 | |
| 9 | 0412-776 | FOIL,PROTECTIVE-SEAT ASSEMBLY | 1 | $3.44 | |
| 10 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 11 | 5506-384 | SEATBASE,CHASSIS-ASSY | 1 | $144.95 | |
| 12 | 0412-779 | R/B 1412-116 | 1 | $28.95 | |
| 13 | 0412-780 | R/B 1412-117 | 1 | $16.95 | |
| 14 | 0412-781 | R/B 1412-118 | 1 | $18.95 | |
| 15 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 16 | 2416-491 | COVER,BATTERY BOX-SEATBASE | 1 | $23.39 | |
| 17 | 1623-156 | GROMMET, 3/8(ID)-7/8(OD) | 1 | $4.82 | |
| 19 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 21 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 |
