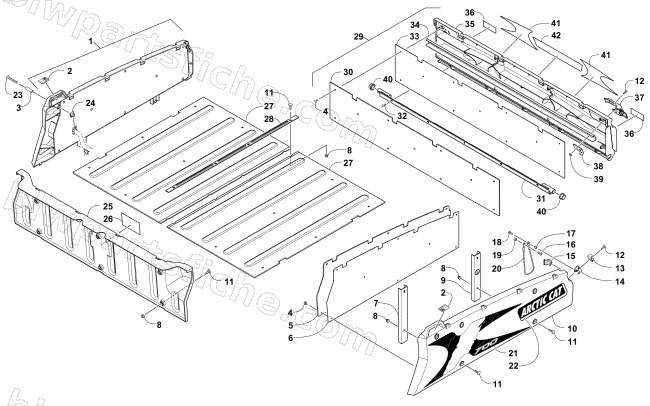

CARGO BOX AND TAILGATE ASSEMBLY
2016 HDX 700 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4411-882 | DECAL,WARNING-BOX | 1 | $3.02 | |
| 3 | 2416-368 | TUBE,SPACER | 1 | $5.65 | |
| 4 | 1423-011 | SCREW,TSTRH SELF TAP#10 X 3/4 | 1 | $0.95 | |
| 5 | 4506-524 | R/B 7506-728 | 1 | $143.95 | |
| 6 | 2416-647 | PAD,FOAM-SIDE PANEL | 1 | $20.63 | |
| 7 | 4506-154 | BRACKET,SIDE MOUNT-REAR-WELDMENT | 1 | $47.95 | |
| 8 | 8424-802 | NUT,HEX-FLG M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 9 | 4506-153 | BRACKET,SIDE MOUNT-FRONT-WELDMENT | 1 | $47.95 | |
| 10 | 2416-392 | PANEL,SIDE-RH | 1 | $129.95 | |
| 10 | 2416-393 | PANEL,SIDE-LH | 1 | $129.95 | |
| 11 | 0423-623 | BOLT,CRG-M8-1.25X30-BLK | 1 | $1.50 | |
| 12 | 1423-038 | SCREW,MACH-TSTRH M6X1.0X20 | 1 | $1.50 | |
| 13 | 2516-710 | BRACKET, LATCH - PTD BLACK | 1 | $17.87 | |
| 14 | 2416-379 | BRACKET,LATCH | 1 | $17.87 | |
| 15 | 2416-390 | PAD,TAILGATE-RH | 1 | $2.61 | |
| 15 | 2416-391 | PAD,TAILGATE-LH | 1 | $2.61 | |
| 16 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 17 | 1423-009 | SPACER, TAILGATE CABLE | 1 | $4.54 | |
| 18 | 8468-525 | SCREW,MACH-TSPNH M5X0.8X25 CL8.8 BLK | 1 | $15.11 | |
| 20 | 0487-080 | CABLE,TAILGATE-HDX | 1 | $17.87 | |
| 21 | 4411-778 | DECAL,BOX-"X"-RH (HDX 700 CAMO) | 1 | $90.95 | |
| 21 | 4411-779 | DECAL,BOX-"X"-LH (HDX 700 CAMO) | 1 | $90.95 | |
| 21 | 4411-774 | DECAL,BOX-SIDE"X"-RH (700) | 1 | $66.95 | |
| 21 | 4411-775 | DECAL,BOX-SIDE-"X"-LH (700) | 1 | $66.95 | |
| 21 | 4411-784 | DECAL,BOX-SIDE"X"-RH (700) | 1 | $66.95 | |
| 21 | 4411-785 | DECAL,BOX-SIDE-"X"-LH (700) | 1 | $66.95 | |
| 22 | 2411-208 | DECAL,SIDE-RR-RH (ARCTIC CAT) | 1 | $19.72 | |
| 22 | 2411-209 | DECAL,SIDE-RR-LH (ARCTIC CAT) | 1 | $19.72 | |
| 23 | 1423-010 | SCREW,TSPNH M10X1.25X70 4037A RIE | 1 | $10.97 | |
| 24 | 2416-378 | CLIP, SIDE PANEL MOUNTING | 1 | $17.87 | |
| 25 | 4406-588 | PANEL,FRONT | 1 | $129.95 | |
| 26 | 4411-969 | DECAL,WARNING-CARGO (700 HDX) | 1 | $17.87 | |
| 27 | 2416-396 | PANEL,CARGO BOX-BED | 1 | $187.95 | |
| 28 | 2516-871 | STRIP,BOX BOT CENTER-PTD BLACK | 1 | $33.95 | |
| 29 | 4506-589 | TAILGATE-ASSEMBLY | 1 | $573.95 | |
| 30 | 4506-526 | PANEL,INNER-TAILGATE-PTD | 1 | $129.95 | |
| 31 | 4506-626 | PIVOT,TAILGATE-PTD BLACK | 1 | $114.95 | |
| 32 | 1423-083 | SCREW,TSPH 1/4-10 X 1-1/4 PLASTITE | 1 | $2.19 | |
| 33 | 2416-648 | PAD,FOAM-TAILGATE | 1 | $17.87 | |
| 34 | 2416-652 | SUPPORT, TAILGATE | 1 | $64.95 | |
| 35 | 2416-395 | PANEL,TAILGATE | 1 | $129.95 | |
| 36 | 2411-182 | DECAL,REFLECTOR-REAR-HDX | 1 | $6.34 | |
| 37 | 2516-729 | LATCH, TAILGATE - PTD BLACK | 1 | $54.95 | |
| 38 | 2416-370 | BRACKET, LATCH SUPPORT | 1 | $19.25 | |
| 39 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 40 | 2416-363 | BUSHING, TAILGATE PIVOT | 1 | $6.47 | |
| 41 | 4411-780 | DECAL,TAILGATE SIDE-RH-(HDX 700 CAMO) | 1 | $17.87 | |
| 41 | 4411-781 | DECAL,TAILGATE SIDE-LH-(HDX 700 CAMO) | 1 | $17.87 | |
| 41 | 4411-776 | DECAL,TAILGATE SIDE RH-(HDX 700 BLACK) | 1 | $17.87 | |
| 41 | 4411-777 | DECAL,TAILGATE SIDE LH-(HDX 700 BLACK) | 1 | $17.87 | |
| 41 | 4411-740 | DECAL,TAILGATE SIDE RH-(HDX 700 TAG) | 1 | $17.87 | |
| 41 | 4411-741 | DECAL,TAILGATE SIDE LH-(HDX 700 TAG) | 1 | $17.87 | |
| 42 | 2411-212 | DECAL,TAILGATE-CENTER (ARCTIC CAT) | 1 | $4.95 |
