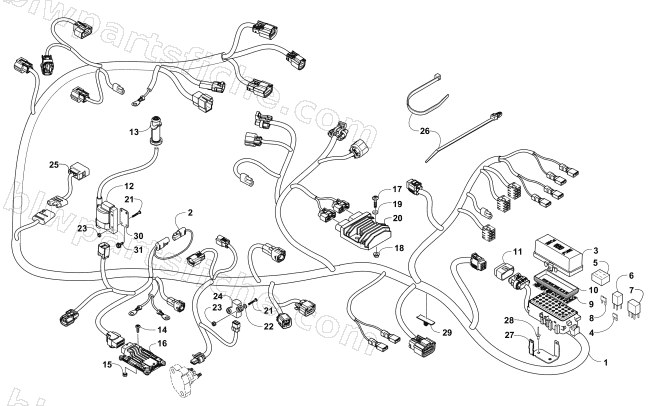

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — WIRING HARNESS ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 3 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 4 | 0430-100 | CIRCUIT BREAKER,MINI-15A (FAN) | 1 | $12.35 | |
| 5 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 6 | 0430-045 | RELAY,SPST-4P 12V/20A | 1 | $30.95 | |
| 7 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 8 | 0430-032 | FUSE, MINI-10A | 1 | $3.02 | |
| 8 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 8 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 10 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 11 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 12 | 0824-071 | COIL/CAP,IGN-ASSY (012 H1/H2) | 1 | $260.95 | |
| 13 | 0824-049 | CAP,SPARK PLUG () | 1 | $15.11 | |
| 14 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0530-124 | ECM,EFI-S (014 700 HDX) | 1 | $687.95 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 8424-602 | NUT,HEX-FLG M6X1.0 CL8 Z&Y | 1 | $0.26 | |
| 19 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 20 | 0824-078 | REGULATOR,VOLTAGE (35-AMP) | 1 | $212.95 | |
| 21 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 | |
| 22 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 23 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 24 | 0409-064 | SENSOR,INCLINATION (AD) | 1 | $90.95 | |
| 25 | 0486-403 | HARNESS,ADAPTER-TAILLIGHT | 1 | $37.95 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 26 | 0423-075 | TIE,CABLE-PUSH MOUNT | 1 | $0.95 | |
| 26 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 27 | 0745-388 | BRACKET, PDM - PTD | 1 | $20.63 | |
| 28 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 29 | 0430-102 | RETAINER,CLIP-HARNESS (5 FIN) | 1 | $1.50 | |
| 31 | 0623-361 | SCREW,SELF TAP-HWH #10-24X1/2 TYP F Z&Y | 1 | $0.40 |
