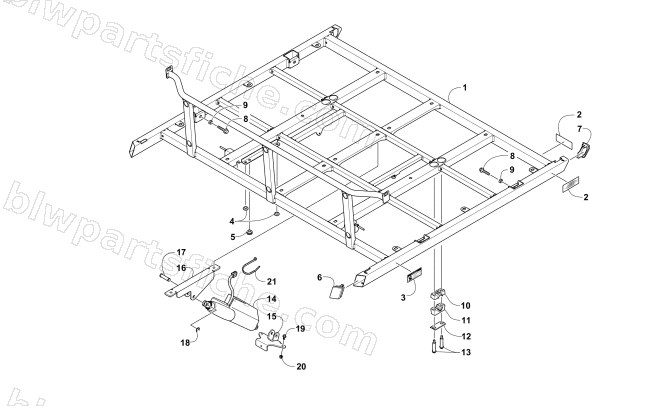

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — TILT FRAME ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2516-712 | FRAME,FLATBED-PTD BLACK | 1 | $1,048.95 | |
| 2 | 2411-182 | DECAL,REFLECTOR-REAR-HDX | 1 | $6.34 | |
| 3 | 4411-883 | R/B 6411-496 | 1 | $4.95 | |
| 4 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 5 | 1423-057 | BUMPER,CARGO BOX-HDX | 1 | $10.97 | |
| 6 | 2416-366 | CAP, FRONT - RH | 1 | $27.95 | |
| 6 | 2416-367 | CAP, FRONT - LH | 1 | $27.95 | |
| 7 | 2416-364 | CAP, REAR - RH | 1 | $27.95 | |
| 7 | 2416-365 | CAP, REAR - LH | 1 | $27.95 | |
| 8 | 1423-012 | SCREW,HFH M10X1.25X50 FUL JIS C10.9 Z&Y | 1 | $3.30 | |
| 9 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 10 | 0405-139 | HOUSING,UPPER | 1 | $6.47 | |
| 11 | 0405-138 | HOUSING,LOWER | 1 | $10.97 | |
| 12 | 0405-166 | CAP, HOUSING-BLACK | 1 | $37.95 | |
| 13 | 0423-505 | SCREW,SHOULDER-M8-1.25X45 | 1 | $1.78 | |
| 19 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 20 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
