2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — STARTER CLUTCH ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

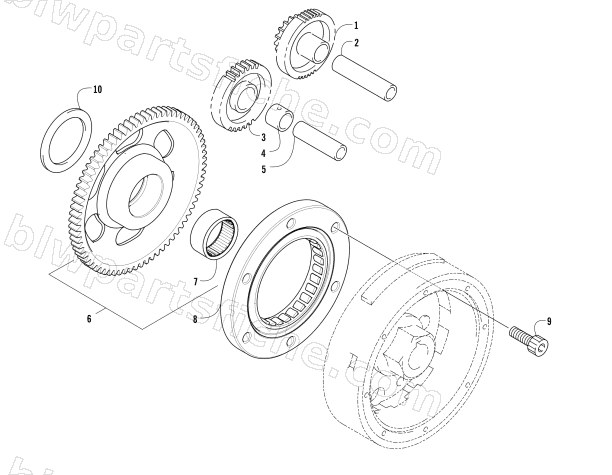

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0815-033 | GEAR,STARTER-IDLER (44T/14T SC) | 1 | $100.95 | |
| 2 | 0829-031 | SHAFT,STARTER GEAR,12X58.5 | 1 | $10.97 | |
| 3 | 0815-002 | GEAR,STARTER IDLER-27T- NO. 2 | 1 | $82.95 | |
| 4 | 0815-003 | SPACER, STARTER IDLER GEAR NO. 2 | 1 | $4.82 | |
| 5 | 0829-032 | SHAFT,STARTER GEAR,12X44.7 | 1 | $20.63 | |
| 6 | 0815-004 | GEAR,STARTER CLUTCH-73T-ASSY | 1 | $231.95 | |
| 7 | 0832-079 | BEARING,NEEDLE ROLLER-31X39X18 | 1 | $30.95 | |
| 8 | 0802-035 | CLUTCH, ONE WAY W/ HUB - ASSEMBLY | 1 | $252.95 | |
| 9 | 0826-069 | SCREW, TORX SOCKET HEAD, M8 x 1.25 x 20 | 1 | $1.50 | |
| 10 | 0828-094 | WASHER,STEEL 30 X 50 X 2.5 | 1 | $6.75 |
