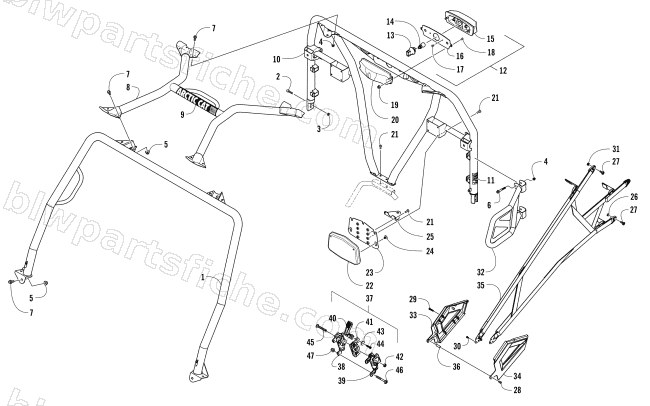

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — ROPS AND TAILLIGHT ASSEMBLY
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-730 | HOOP,CANOPY-FRONT-PTD-BLK | 1 | $324.95 | |
| 2 | 1423-140 | SCREW,CAP-HSH M10 X 1.25 X 35 | 1 | $1.78 | |
| 3 | 1423-161 | NUT,HEX LOCK-NSL M10X1.25 GR 8 DIN 985 | 1 | $0.68 | |
| 4 | 8427-805 | NUT,HEX FLG-NYLOCK M8X1.25 CL8 RIE BLACK | 1 | $1.09 | |
| 6 | 8410-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 RIE BLK | 1 | $1.50 | |
| 7 | 1423-151 | SCREW,CAP-HFH M10X1.25X25 - CL10.9 | 1 | $3.30 | |
| 8 | 4506-865 | TOP,CANOPY-PTD BLACK | 1 | $244.95 | |
| 10 | 5506-850 | R/B 8506-116 | 1 | $630.95 | |
| 11 | 3411-970 | DECAL,WARNING-ROPS | 1 | $3.30 | |
| 12 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 13 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 14 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 15 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 16 | 2406-069 | BRACKET,TAILLIGHT MOUNT-BLACK | 1 | $20.63 | |
| 17 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 18 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 2516-893 | COVER,TAILLIGHT | 1 | $13.73 | |
| 21 | 0423-361 | SCREW,MACH-TSTRH M6-1.0 X 12 CL8.8 BLK | 1 | $0.95 | |
| 22 | 4406-989 | PAD,HEADREST | 1 | $26.95 | |
| 23 | 1506-722 | HEADREST MOUNT-PAINTED-BLACK | 1 | $89.95 | |
| 24 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 25 | 4506-296 | BRACKET,FLAG MOUNTING-PTD BLACK | 1 | $17.87 | |
| 26 | 1423-153 | HEX NYLON NUT CL8 BLK ZINC M6(DIN 985) | 1 | $0.95 | |
| 27 | 1423-196 | BOLT,SHOULDER-M6 X 1.0 X 12mm LG | 1 | $5.37 | |
| 28 | 1423-294 | SCREW,BUTTON HEAD TORX BLK M5-0.8X12 | 1 | $1.23 | |
| 29 | 1423-295 | SCREW,BUTTON HEAD TORX BLK 4-1.34X28 | 1 | $1.50 | |
| 30 | 1423-296 | SCREW, BUTTON HEAD TORX BLK 4-1.34X9.5 | 1 | $1.50 | |
| 31 | 1423-171 | NUT,FLG LOCK-NYLON SL M6-1.0 CL8 Z&B | 1 | $1.23 | |
| 32 | 7506-158 | GUARD,SHOULDER-RH-PTD BLACK | 1 | $141.95 | |
| 32 | 7506-159 | GUARD,SHOULDER-LH-PTD BLACK | 1 | $114.95 | |
| 33 | 4406-900 | HANDLE,NET-INSIDE-RH | 1 | $27.95 | |
| 33 | 4406-901 | HANDLE,NET-INSIDE-LH | 1 | $34.95 | |
| 34 | 4406-898 | HANDLE,NET-RH | 1 | $23.39 | |
| 34 | 4406-899 | HANDLE,NET-LH | 1 | $23.39 | |
| 35 | 4406-906 | NET,DOOR-RH | 1 | $136.95 | |
| 35 | 4406-907 | NET,DOOR-LH | 1 | $136.95 | |
| 36 | 4406-897 | PIN,STRIKER | 1 | $6.20 | |
| 37 | 7506-134 | LATCH-RH-ASSY | 1 | $122.95 | |
| 37 | 7506-135 | LATCH-LH-ASSY | 1 | $122.95 | |
| 38 | 4406-902 | BRKT,INNER LATCH MTG | 1 | $16.49 | |
| 39 | 4406-903 | BRKT,OUTER LATCH MTG | 1 | $16.49 | |
| 40 | 4406-904 | LEVER,RELEASE-RH | 1 | $13.73 | |
| 40 | 4406-905 | LEVER,RELEASE-LH | 1 | $13.73 | |
| 41 | 4406-908 | LATCH,ROTARY (50203) | 1 | $101.95 | |
| 41 | 4406-909 | LATCH,ROTARY (50202) | 1 | $82.95 | |
| 42 | 0423-649 | NUT,JAM-M6X1.0 LH | 1 | $0.68 | |
| 43 | 1423-297 | WASHER, M4 BLACK FENDER | 1 | $0.95 | |
| 44 | 1423-319 | SCREW,BHTS HI-LO 4.0-1.34X22-BLK | 1 | $1.50 | |
| 45 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 46 | 8477-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&BLK | 1 | $1.50 | |
| 47 | 8427-605 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 RIE BLK | 1 | $1.50 |
