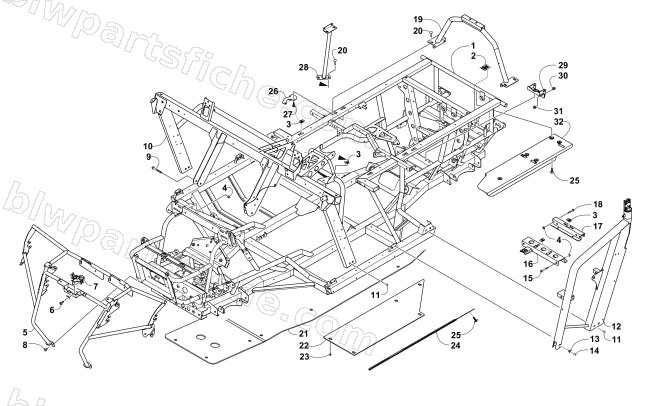

2016 Arctic Cat HDX 700 XT SE HUNTER EDITION — FRAME AND RELATED PARTS
2016 HDX 700 XT SE HUNTER EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 4411-110 | DECAL,WARNING-TOWING-REAR | 1 | $4.95 | |
| 3 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 4 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 5 | 5506-720 | BUMPER,PTD-BLK | 1 | $215.95 | |
| 6 | 0423-910 | SCREW,TSH-M6-1.0X16-BLK W/PATCH LOCK | 1 | $1.09 | |
| 7 | 4406-624 | LATCH,HOOD | 1 | $53.95 | |
| 8 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 9 | 8408-855 | SCREW,CAP-HFH M8X1.25X55 CL8.8 Z&Y | 1 | $1.92 | |
| 10 | 5506-725 | SUPPORT,STEERING-PTD BLACK | 1 | $477.95 | |
| 11 | 0423-817 | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 1 | $1.50 | |
| 12 | 5506-726 | R/B 8506-110 | 1 | $360.95 | |
| 12 | 5506-727 | R/B 8506-111 | 1 | $360.95 | |
| 13 | 1423-051 | SPACER,STEEL | 1 | $13.73 | |
| 14 | 0423-886 | SCREW, MACH-TSTH M8-1.25X30 BLK- W/PATCH | 1 | $3.02 | |
| 15 | 8408-870 | SCREW,CAP-HFH M8X1.25X70 CL8.8 Z&Y | 1 | $2.61 | |
| 16 | 5506-902 | BRKT, SEAT SUPPORT-FR-RH-PTD BLK | 1 | $64.95 | |
| 16 | 5506-903 | BRKT, SEAT SUPPORT-FR-LH-PTD BLK | 1 | $64.95 | |
| 17 | 1506-842 | BRACKET,SEAT-SUPPORT-REAR-PAINTED BLK | 1 | $23.39 | |
| 18 | 8408-850 | SCREW,CAP-HFH M8X1.25X50 CL8.8 Z&Y | 1 | $1.09 | |
| 20 | 8476-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&Y | 1 | $0.40 | |
| 22 | 2416-453 | SKID PLATE,SIDE | 1 | $50.95 | |
| 23 | 0423-545 | SCREW,BODY-SELF TAP #12 X 3/4 A Z&B | 1 | $1.09 | |
| 24 | 2506-612 | PLATE,SKID-SIDE-BLACK | 1 | $96.95 | |
| 25 | 1423-198 | SCREW,MACH-TSBWH M6X 1.0 TRILOBE BLK | 1 | $0.95 | |
| 26 | 0413-326 | BRACKET,AIR INTAKE | 1 | $8.21 | |
| 27 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 28 | 2516-777 | TUBE,SUPPRT-PTD BLK | 1 | $37.95 | |
| 30 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 |
