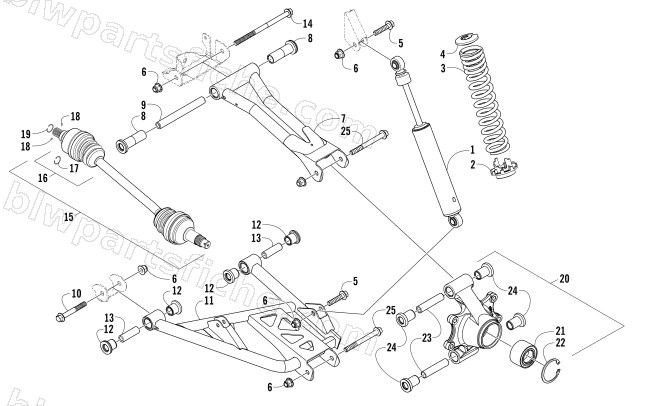

REAR SUSPENSION ASSEMBLY
2016 ALTERRA 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0404-419 | SHOCK,REAR | 1 | $126.95 | |
| 2 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 3 | 0504-883 | SPRING,COIL-PTD WHITE | 1 | $74.95 | |
| 4 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 5 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 6 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 7 | 0504-948 | A-ARM,REAR UPPER-BLK-ASSY | 1 | $122.95 | |
| 8 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 9 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 10 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 11 | 0504-942 | A-ARM,REAR LOWER RH-BLK-ASSY | 1 | $122.95 | |
| 11 | 0504-943 | A-ARM,REAR LOWER LH-BLK-ASSY | 1 | $122.95 | |
| 12 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 13 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 14 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 16 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 18 | 1402-884 | PIN,TRANSFER,LONG-COUPLER AXLE | 1 | $1.64 | |
| 19 | 1402-890 | CIRCLIP,25MM | 1 | $5.09 | |
| 20 | 0504-999 | KNUCKLE,REAR-ASSY | 1 | $244.95 | |
| 21 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 22 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 23 | 0403-437 | COLLAR,SUSPENSION BUSHING-REAR K | 1 | $6.89 | |
| 24 | 0403-283 | BUSHING,REAR SUSPENSION | 1 | $2.75 | |
| 25 | 8409-000 | SCREW, CAP-HFH M10-1.25 X100 Z&Y CL10.9 | 1 | $1.37 |
