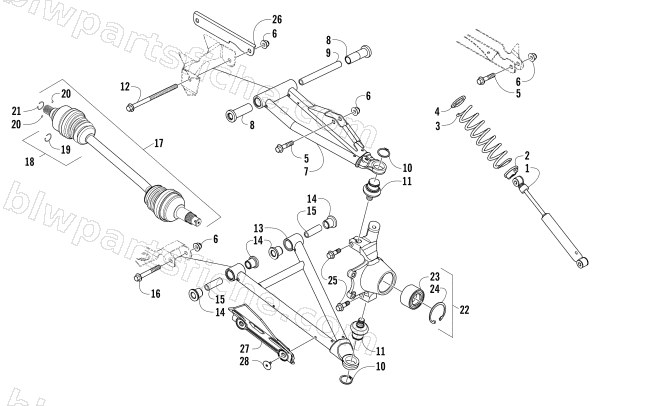

FRONT SUSPENSION ASSEMBLY
2016 ALTERRA 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0403-420 | SHOCK,FRONT | 1 | $140.95 | |
| 2 | 0403-395 | CAM,ADJUSTER-SPRING | 1 | $20.63 | |
| 4 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 5 | 8409-045 | SCREW,CAP-HFH M10X1.25X45 CL10.9 Z&Y | 1 | $1.50 | |
| 6 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 7 | 0503-870 | A-ARM,FRONT UPPER RH-BLK-ASSY | 1 | $299.95 | |
| 7 | 0503-871 | A-ARM,FRONT UPPER LH-BLK-ASSY | 1 | $299.95 | |
| 8 | 0403-289 | BUSHING,UPPER A-ARM SUSPENSION | 1 | $4.13 | |
| 9 | 0403-439 | COLLAR,SUSPENSION BUSHING-UPPER A-ARM | 1 | $17.87 | |
| 10 | 0423-009 | CLIP,BALL JOINT | 1 | $1.37 | |
| 11 | 0405-483 | BALLJOINT-ASSY (DOUBLE STAKE) | 1 | $38.95 | |
| 12 | 0423-334 | SCREW, CAP-HFH M10-1.25 X165 Z&Y CL10.9 | 1 | $5.65 | |
| 13 | 0503-868 | A-ARM,FRONT LOWER RH-BLK-ASSY | 1 | $224.95 | |
| 13 | 0503-869 | A-ARM,FRONT LOWER LH-BLK-ASSY | 1 | $224.95 | |
| 14 | 0403-409 | BUSHING,A-ARM SUSPENSION | 1 | $2.47 | |
| 15 | 0403-438 | COLLAR,SUSPENSION BUSHING-A-ARM | 1 | $4.95 | |
| 16 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 18 | 2436-111 | KIT,REPAIR-CV BOOT | 1 | $80.95 | |
| 20 | 1402-885 | PIN,TRANSFER,SHORT-COUPLER AXLE | 1 | $1.92 | |
| 21 | 1402-889 | CIRCLIP,22MM | 1 | $1.78 | |
| 22 | 0503-880 | KNUCKLE,FR-RH-ASSY | 1 | $316.95 | |
| 22 | 0503-881 | KNUCKLE,FR-LH-ASSY | 1 | $316.95 | |
| 23 | 1402-809 | BEARING,WHEEL | 1 | $33.95 | |
| 24 | 0423-423 | RING,RETAINING (HOUSING ID:55) | 1 | $4.13 | |
| 25 | 0423-998 | SCREW,SHLDR-M10X30 CL10.9 BLK (W/ PATCH) | 1 | $2.61 | |
| 26 | 7506-033 | BRACE,A-ARM PTD BLK | 1 | $9.59 | |
| 27 | 4406-714 | GUARD,BOOT-FRONT-RH-BLACK | 1 | $41.95 | |
| 27 | 4406-715 | GUARD,BOOT-FRONT-LH-BLACK | 1 | $41.95 | |
| 28 | 1423-109 | SCREW,SELF TAP-TSTRH MR6X1.0X16 | 1 | $2.75 |
