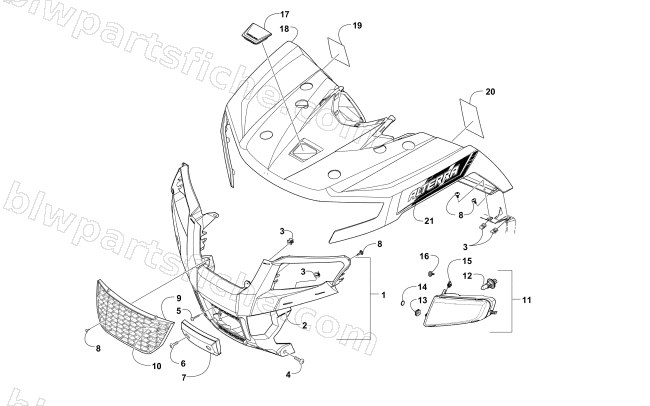

2016 Arctic Cat ALTERRA 700 XT EPS — FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
2016 ALTERRA 700 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5506-753 | FASCIA,FRONT-W/REFLECTORS | 1 | $163.95 | |
| 2 | 4411-168 | REFLECTOR,FRONT-RH | 1 | $5.92 | |
| 2 | 4411-169 | REFLECTOR,FRONT-LH | 1 | $5.92 | |
| 3 | 1423-321 | CLIP,RETAINING | 1 | $0.54 | |
| 4 | 8409-020 | SCREW,CAP-HFH M10X1.25X20 CL10.9 Z&Y | 1 | $0.54 | |
| 5 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 6 | 8468-820 | SCREW,MACH-TSPNH M8X1.25X20 CL8.8 BLK | 1 | $1.50 | |
| 7 | 4406-584 | COVER,WINCH | 1 | $37.95 | |
| 8 | 1423-284 | SCREW,SELF TAPPING-HIGH/LOW | 1 | $1.50 | |
| 9 | 4406-990 | GRILL,FRONT-151 ATV (13.5 mm TABS) | 1 | $20.63 | |
| 10 | 4411-479 | EMBLEM,AIRCAT | 1 | $5.95 | |
| 11 | 0509-102 | HEADLIGHT,HALOGEN/LED-RH (XR XT) | 1 | $169.95 | |
| 11 | 0509-103 | HEADLIGHT,HALOGEN/LED-LH (XR XT) | 1 | $169.95 | |
| 12 | 0409-182 | BULB,HEADLIGHT-H13 HALOGEN | 1 | $50.95 | |
| 13 | 4406-722 | GROMMET-RH | 1 | $2.88 | |
| 13 | 4406-723 | GROMMET-LH | 1 | $2.88 | |
| 14 | 1423-326 | O-RING,D:.116 ID: .924-EPDM (3-912) | 1 | $2.75 | |
| 15 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 16 | 2623-113 | SCREW,1" RND KNOB-M5X0.8X15MM LG | 1 | $3.71 | |
| 17 | 4406-784 | PLUG,ACCESS COOLING | 1 | $6.89 | |
| 18 | 7506-144 | FENDER,FRONT-TRUE TIMBER HTC-ASSY | 1 | $1,013.95 | |
| 19 | 4411-672 | R/B 6411-422 | 1 | $13.95 | |
| 20 | 4411-673 | DECAL,WARNING-FRONT FENDER-LH | 1 | $8.21 |
