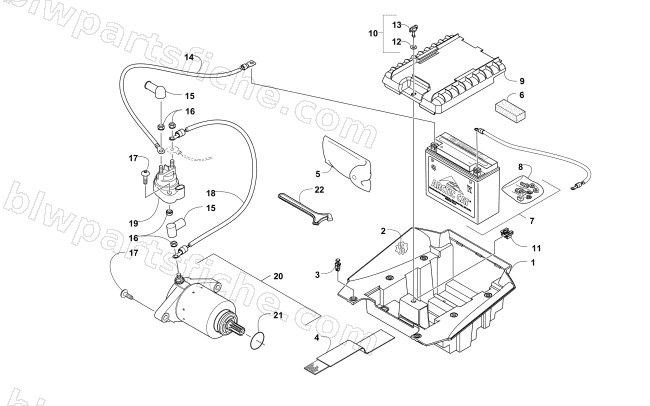

BATTERY AND STARTER ASSEMBLY
2016 ALTERRA 700 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-532 | BOX,BATTERY | 1 | $82.95 | |
| 2 | 0412-847 | R/B 1412-107 | 1 | $26.95 | |
| 3 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 4 | 0444-291 | RETAINER,VELCRO (2" X 9") | 1 | $10.97 | |
| 5 | 4406-599 | KIT,TOOL | 1 | $85.95 | |
| 6 | 0417-016 | PAD,BATTERY-0.75" | 1 | $2.33 | |
| 7 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 8 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 9 | 4406-525 | LID,BOX,BATTERY | 1 | $85.95 | |
| 10 | 1423-218 | FASTENER,QUARTER TURN - ASSEMBLY | 1 | $4.54 | |
| 11 | 1423-208 | RECEIVER,QUARTER TURN FASTENER | 1 | $1.95 | |
| 12 | 1423-209 | RETAINER,QUARTER TURN FASTENER | 1 | $0.95 | |
| 13 | 1423-207 | KNOB,QUARTER TURN FASTENER | 1 | $2.75 | |
| 14 | 0445-049 | CABLE,BATTERY-SOLENOID (18" RED #6) | 1 | $27.95 | |
| 15 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 18 | 0445-110 | CABLE,BATTERY-SOLENOID-22" RED #6 | 1 | $33.95 | |
| 19 | 0445-058 | SOLENOID,STARTER RELAY | 1 | $37.95 | |
| 20 | 0825-024 | MOTOR,STARTER-ENGINE (PD 11.25) | 1 | $268.95 | |
| 21 | 0830-228 | O-RING,33.5MMX3MM | 1 | $5.09 | |
| 22 | 0441-587 | WRENCH,SPANNER-66MM | 1 | $4.95 |
