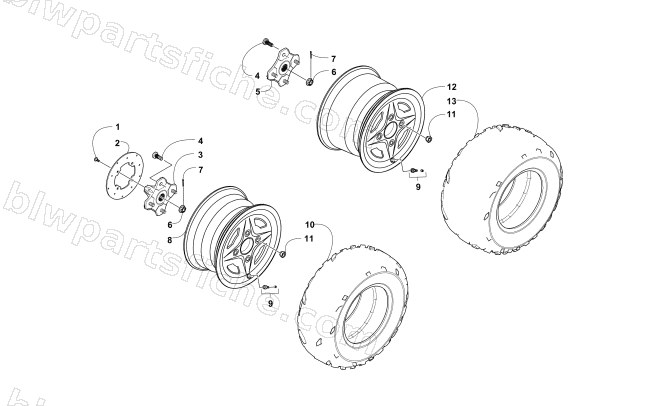

WHEEL AND TIRE ASSEMBLY
2016 ALTERRA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-557 | SCREW,SHLDR-TSPH M6-1.0X18MM Z&Y W/2353 | 1 | $0.68 | |
| 2 | 1436-808 | KIT-DISC,BRAKE | 1 | $58.95 | |
| 3 | 1502-462 | HUB - ASSEMBLY (W/DISC PEARCH) | 1 | $177.95 | |
| 4 | 0402-974 | STUD,WHEEL-M10X1.25 (Z&C) | 1 | $3.16 | |
| 5 | 1502-464 | HUB,ASSEMBLY (W/O DISC PEARCH) | 1 | $129.95 | |
| 6 | 0423-607 | NUT,CASTLE FLANGE-M22 X 1.5 | 1 | $6.20 | |
| 7 | 0423-407 | PIN,COTTER-1/8X1-1/2 | 1 | $0.40 | |
| 8 | 2402-146 | WHEEL,STEEL-PTD BLK (12X6.0) | 1 | $125.95 | |
| 9 | 0402-064 | VALVE STEM(412-50)(SCHRADER) | 1 | $3.44 | |
| 10 | 2402-250 | TIRE,DURO KADEN-25X8-12 | 1 | $189.95 | |
| 11 | 0423-408 | NUT,LUG-M10 | 1 | $1.37 | |
| 12 | 2402-144 | WHEEL,STEEL-PTD BLK (12X7.5) | 1 | $122.95 | |
| 13 | 2402-251 | TIRE,DURO KADEN-25X10-12 | 1 | $193.95 |
