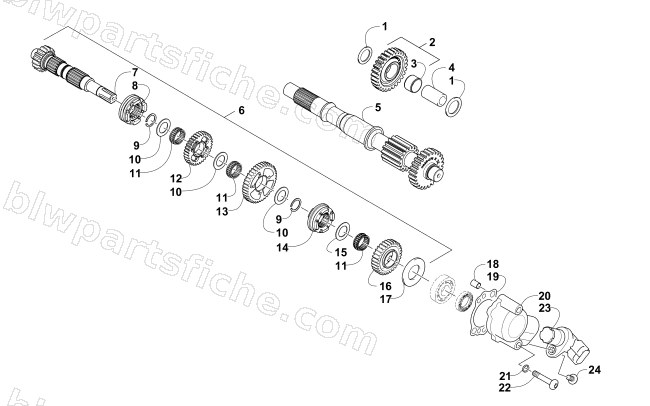

SECONDARY TRANSMISSION ASSEMBLY
2016 ALTERRA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0828-101 | WASHER,STEEL-20X30X1 | 1 | $1.50 | |
| 2 | 0822-092 | GEAR,REVERSE-BUSHING | 1 | $82.95 | |
| 4 | 0822-080 | SHAFT,REVERSE-IDLER | 1 | $30.95 | |
| 5 | 0822-076 | DRIVE SHAFT | 1 | $324.95 | |
| 6 | 0822-154 | COUNTERSHAFT ASSY-PB | 1 | $1,454.95 | |
| 7 | 0822-134 | COUNTERSHAFT | 1 | $324.95 | |
| 8 | 0822-135 | DOG,SLIDING-REVERSE | 1 | $94.95 | |
| 9 | 0831-091 | RING,EXTERNAL RETAINING DSH-26 | 1 | $5.78 | |
| 10 | 0828-099 | WASHER,SPLINED | 1 | $5.51 | |
| 11 | 0832-061 | BEARING,NEEDLE-SPLIT CASE | 1 | $20.63 | |
| 12 | 0822-136 | GEAR, REVERSE DRIVEN-33T | 1 | $156.95 | |
| 13 | 0822-137 | GEAR,DRIVEN-LOW-40T | 1 | $148.95 | |
| 14 | 0822-155 | DOG,SLIDING-FORWARD-PB | 1 | $187.95 | |
| 15 | 0822-075 | SHIM,COUNTERSHAFT | 1 | $5.37 | |
| 16 | 0822-139 | GEAR,DRIVEN-HIGH-30T | 1 | $126.95 | |
| 17 | 0829-059 | WASHER,RETAINING-THRUST | 1 | $6.75 | |
| 18 | 0829-023 | PIN, SOLID DOWEL (6 X12) | 1 | $3.16 | |
| 19 | 0830-129 | GASKET,ODOMETER DRIVE | 1 | $3.44 | |
| 20 | 0822-130 | HOUSING,SPEEDO SENSOR (SHORT) | 1 | $33.95 | |
| 21 | 0830-107 | SEAL,FASTENER | 1 | $4.95 | |
| 22 | 8468-645 | SCREW,MACH-TSPNH M6X1.0X45 CL8.8 BLK | 1 | $1.23 | |
| 23 | 0430-121 | SENSOR,SPEED-LOR MX | 1 | $43.95 | |
| 24 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 |
