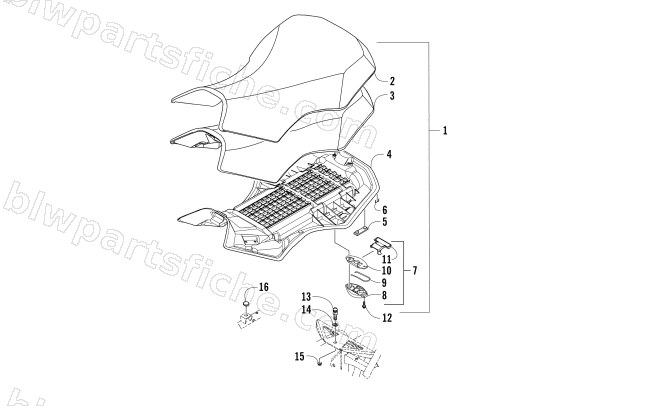

SEAT ASSEMBLY
2016 ALTERRA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 5506-673 | COVER,SEAT (ATV 151) | 1 | $140.95 | |
| 3 | 0517-170 | FOAM,SEAT-MOLDED.44 RATIO@ 3.3 SHOT TIME | 1 | $133.95 | |
| 6 | 0624-100 | STAPLE,3/8L X 1/2W-20GA SS-SEAT | 1 | $0.12 | |
| 7 | 5506-757 | R/B 7506-729 | 1 | $39.95 | |
| 8 | 1673-635 | COVER,LATCH-SEAT | 1 | $5.95 | |
| 9 | 0673-023 | CLIP,SPRING RETAINING-SS | 1 | $39.95 | |
| 10 | 1673-634 | BACK,LATCH-SEAT | 1 | $8.95 | |
| 12 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 13 | 1423-254 | STUD,LATCH-SEAT (.625" HEX) | 1 | $4.95 | |
| 14 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 15 | 8424-002 | NUT,HEX-FLG M10X1.25 CL8 Z&Y | 1 | $0.68 | |
| 16 | 0406-877 | BUMPER,SEAT | 1 | $3.57 |
