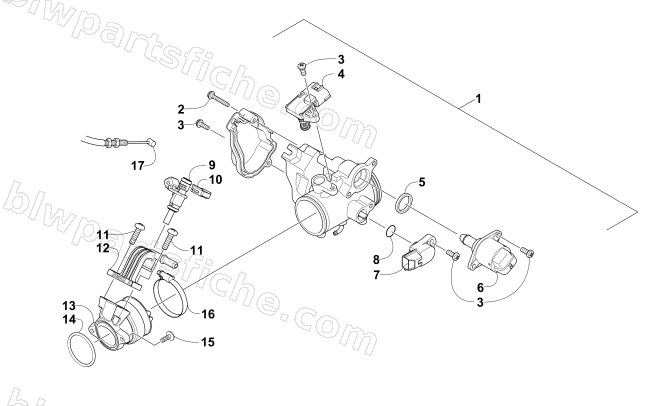

THROTTLE BODY ASSEMBLY
2016 ALTERRA 550 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 0824-052 | SENSOR,T-MAP | 1 | $225.95 | |
| 5 | 0832-088 | SEAL,IDLE SPEED ACTUATOR | 1 | $1.78 | |
| 6 | 0824-054 | ACTUATOR,IDLE SPEED (ISA) | 1 | $212.95 | |
| 7 | 0824-053 | SENSOR,THROTTLE POSITION (TPS) | 1 | $64.95 | |
| 9 | 0470-910 | INJECTOR,SYNERJECT-(3.9 G/SEC) LONG TIP | 1 | $165.95 | |
| 10 | 0470-889 | CLIP,INJECTOR | 1 | $1.78 | |
| 11 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 12 | 1470-059 | RAIL,FUEL-SINGLE | 1 | $6.61 | |
| 13 | 0570-408 | MANIFOLD,INTAKE-SINGLE | 1 | $94.95 | |
| 14 | 0470-531 | O-RING,INTAKE MANIFOLD | 1 | $3.16 | |
| 15 | 0826-008 | SCREW, MACH-TSPH M6 X 1 X 20W/THREADLOC | 1 | $1.50 | |
| 16 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 17 | 0487-100 | CABLE,THROTTLE (ATV) | 1 | $45.95 |
