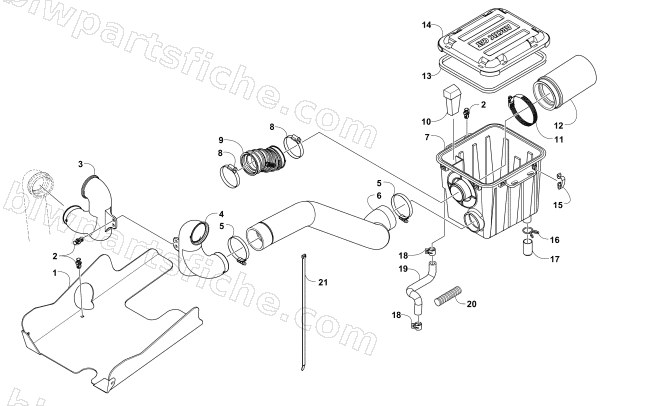

AIR INTAKE ASSEMBLY
2016 ALTERRA 550 XT EPS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4406-934 | PANEL,SPLASH | 1 | $66.95 | |
| 2 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 | |
| 3 | 1470-090 | DUCT,TOP AIR IN-BELT COOLING | 1 | $26.95 | |
| 4 | 1470-089 | DUCT,INTAKE-TOP | 1 | $26.95 | |
| 5 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 6 | 1470-097 | DUCT,INTAKE | 1 | $90.95 | |
| 7 | 0570-403 | BOTTOM, INTAKE HOUSING -W/OUTLET | 1 | $86.95 | |
| 8 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 9 | 1470-047 | BOOT,INTAKE HOUSING | 1 | $69.95 | |
| 10 | 0470-891 | FILTER,CRANKCASE VENT | 1 | $3.16 | |
| 11 | 1623-101 | CLAMP,BAND-SAE #52 | 1 | $15.11 | |
| 12 | 1470-078 | FILTER,INTAKE PAPER-ASSEMBLY | 1 | $69.95 | |
| 13 | 1470-039 | SEAL,INTAKE HOUSING | 1 | $12.35 | |
| 14 | 0570-405 | TOP,INTAKE HOUSING | 1 | $37.95 | |
| 15 | 0423-455 | CLIP,SPRING | 1 | $3.44 | |
| 16 | 1423-278 | CLAMP,CONSTANT TENSION WIRE | 1 | $10.97 | |
| 17 | 0423-766 | CAP,DRAIN-AIR BOX | 1 | $2.06 | |
| 18 | 1623-282 | CLAMP,HOSE-SPRING (12W X 19) | 1 | $4.26 | |
| 19 | 0410-318 | HOSE,CRANKCASE VENT | 1 | $24.77 | |
| 20 | 1619-453 | CONDUIT,FLEXIBLE-HIGH TEMP-.750ID X 37" | 1 | $37.95 | |
| 21 | 1623-740 | TIE,CABLE-15" BLK-120# | 1 | $1.37 |
