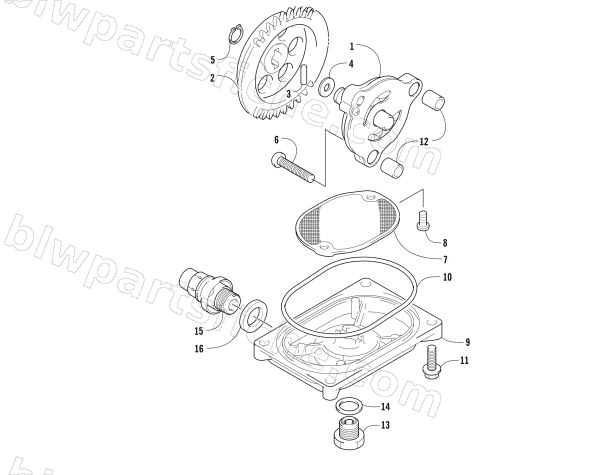

2016 Arctic Cat ALTERRA 500 XT EPS — OIL PUMP AND STRAINER ASSEMBLY
2016 ALTERRA 500 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-069 | PUMP,OIL ASSEMBLY | 1 | $82.95 | |
| 2 | 0812-010 | GEAR, DRIVEN | 1 | $33.95 | |
| 3 | 0812-036 | PIN DRIVEN GEAR | 1 | $3.16 | |
| 4 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 5 | 3304-146 | CIR EXTERNAL 10MM | 1 | $0.95 | |
| 6 | 3307-063 | SCREW PAN 6*25 | 1 | $5.09 | |
| 7 | 0812-049 | STRAINER,OIL | 1 | $23.39 | |
| 8 | 3307-047 | BOLT-WASH 5X12 | 1 | $5.09 | |
| 9 | 0812-038 | CAP,OIL STAINER | 1 | $23.39 | |
| 10 | 0830-159 | O-RING,OIL STRAINER CAP | 1 | $9.59 | |
| 11 | 3307-050 | BOLT FLANGE SH 6*25 | 1 | $2.75 | |
| 12 | 0829-033 | DOWEL,SLEEVE,DIA 8X11 | 1 | $1.64 | |
| 13 | 0812-065 | PLUG,DRAIN-MAGNETIC | 1 | $17.87 | |
| 14 | 0830-143 | WASHER,COMPRESSION 14 X 19 X 1.35 | 1 | $13.73 | |
| 15 | 0812-067 | VALVE,OIL RELIEF-ASSEMBLY | 1 | $37.95 | |
| 16 | 0830-181 | O-RING,OIL RELIEF (15.5X1.5) | 1 | $20.63 |
