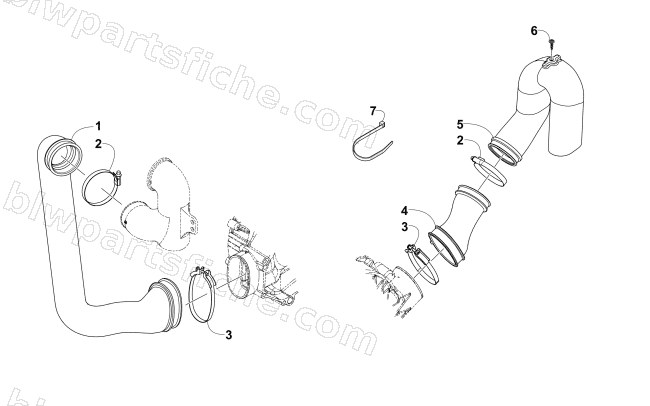

2016 Arctic Cat ALTERRA 500 XT EPS — CASE/BELT COOLING ASSEMBLY
2016 ALTERRA 500 XT EPS
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0413-337 | DUCT,AIR IN-BELT COOLING(500) | 1 | $64.95 | |
| 2 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 3 | 0423-730 | CLAMP,SCREW-OVAL | 1 | $20.63 | |
| 4 | 0413-355 | BOOT,AIR OUT-BELT COOLING | 1 | $13.73 | |
| 5 | 0413-356 | DUCT,AIR OUT-BELT COOLING | 1 | $47.95 | |
| 6 | 0423-342 | SCREW,SELF TAPPING-.1875 X .75 | 1 | $0.26 | |
| 7 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
