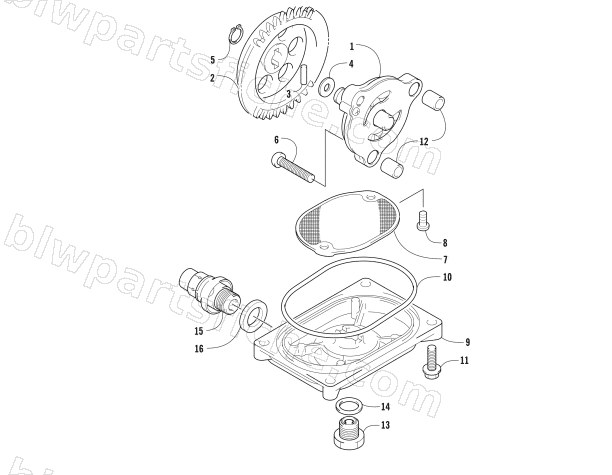

OIL PUMP AND STRAINER ASSEMBLY
2016 ALTERRA 450
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0812-069 | PUMP,OIL ASSEMBLY | 1 | $82.95 | |
| 2 | 0812-010 | GEAR, DRIVEN | 1 | $33.95 | |
| 3 | 0812-036 | PIN DRIVEN GEAR | 1 | $3.16 | |
| 4 | 0828-007 | SHIM, 10 x 18 x .57.8x.5 | 1 | $16.49 | |
| 5 | 3304-146 | CIR EXTERNAL 10MM | 1 | $0.95 | |
| 6 | 3307-063 | SCREW PAN 6*25 | 1 | $5.09 | |
| 7 | 0812-049 | STRAINER,OIL | 1 | $23.39 | |
| 8 | 3307-047 | BOLT-WASH 5X12 | 1 | $5.09 | |
| 9 | 0812-038 | CAP,OIL STAINER | 1 | $23.39 | |
| 10 | 0830-159 | O-RING,OIL STRAINER CAP | 1 | $9.59 | |
| 11 | 3307-050 | BOLT FLANGE SH 6*25 | 1 | $2.75 | |
| 12 | 0829-033 | DOWEL,SLEEVE,DIA 8X11 | 1 | $1.64 | |
| 13 | 0812-065 | PLUG,DRAIN-MAGNETIC | 1 | $17.87 | |
| 14 | 0830-143 | WASHER,COMPRESSION 14 X 19 X 1.35 | 1 | $13.73 | |
| 15 | 0812-067 | VALVE,OIL RELIEF-ASSEMBLY | 1 | $37.95 | |
| 16 | 0830-181 | O-RING,OIL RELIEF (15.5X1.5) | 1 | $20.63 |
